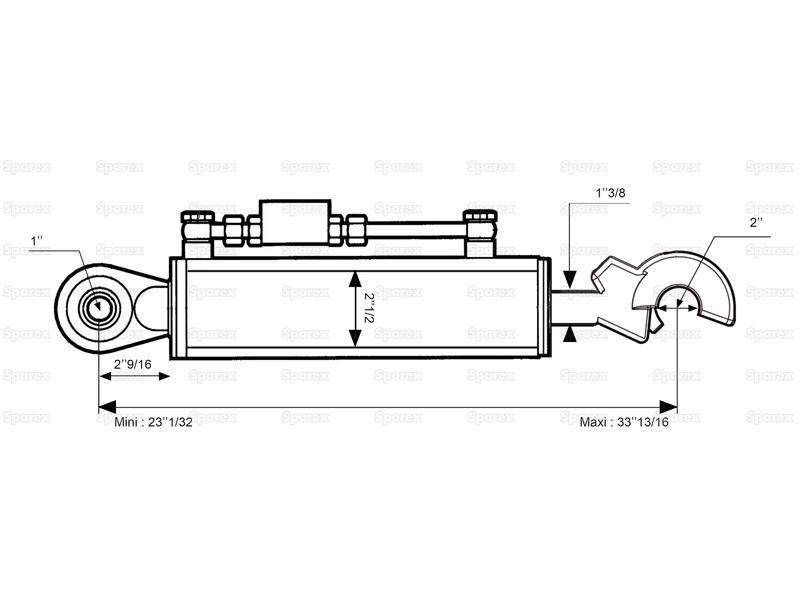

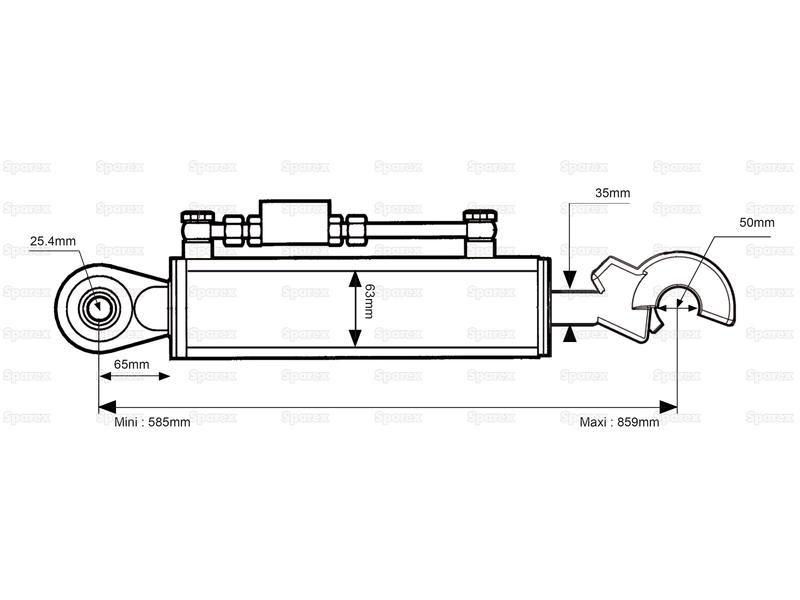

Hydraulic Top Link (Cat. 2/2) Ball/Hook | Cylinder 63mm Min. 585mm
Part Number: S.399821Categories: PTO (shaft), Linkage
Part Number: S.399821
Grade: Replacement
Part Details
Hydraulic Top Link (Cat. 2/2) Ball/Hook | Cylinder 63mm Min. 585mm Min. Length : 585mm, Max. Length : 859mm, Supplied with : Hose set, chain & ball, marker label (with CBM Hook).
Technical Information
| A mm | 65 |
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Check Valve Position | Side |
| Cylinder Bore mm | 63 |
| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 3960 |
| Maximum Length mm | 859 |
| Minimum Length mm | 585 |
| Related Products | 32253, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199 |
| Rod Ø mm | 35 |
| Suitable for Tractors up to hp kW | 100hp (74kW) |
| Supplied with | Hose set, chain & ball, marker label (with CBM Hook) |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 5730 |
| Tractor End | Ball |
| Tractor End Fixing | Ball End |
