Hydraulic Top Link (Cat. 2/2) Ball/Hook | Cylinder 63mm Min. 550mm
Part Number: S.399801Categories: PTO (shaft), Linkage
Part Number: S.399801
Grade: Replacement
Part Details

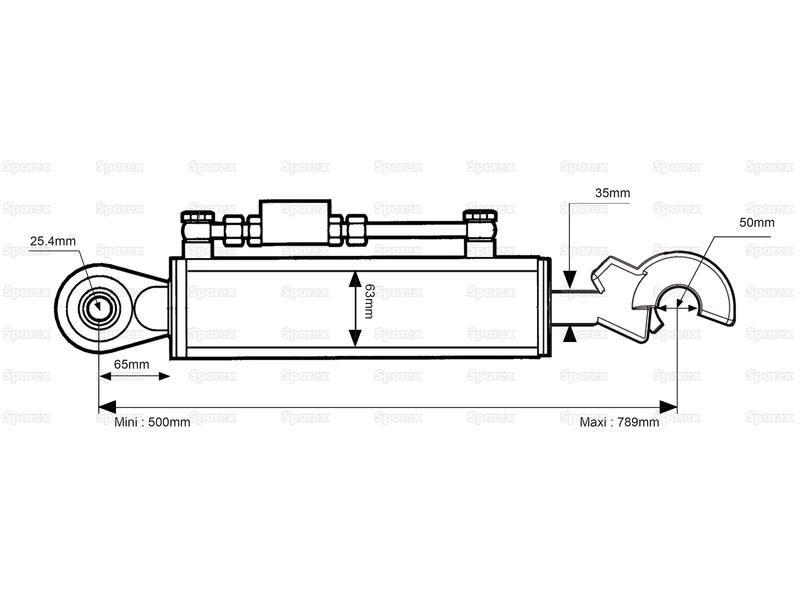

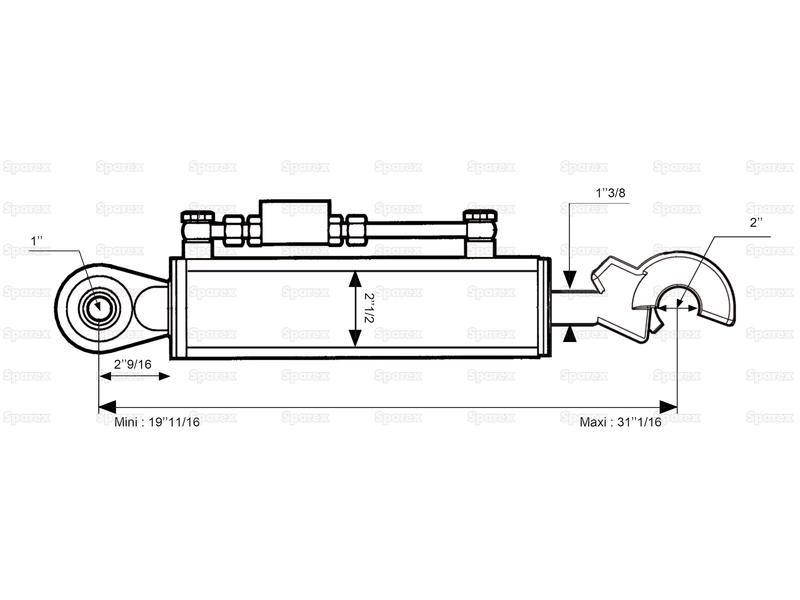

Hydraulic Top Link (Cat. 2/2) Ball/Hook | Cylinder 63mm Min. 550mm Min. Length : 550mm, Max. Length : 789mm, Supplied with : Hose set, chain & ball, marker label (with CBM Hook).
Technical Information
| A mm | 65 |
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Check Valve Position | Side |
| Cylinder Bore mm | 63 |
| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 3960 |
| Maximum Length mm | 789 |
| Minimum Length mm | 550 |
| Related Products | 32253, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199 |
| Rod Ø mm | 35 |
| Suitable for Tractors up to hp kW | 100hp (74kW) |
| Supplied with | Hose set, chain & ball, marker label (with CBM Hook) |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 5730 |
| Tractor End | Ball |
| Tractor End Fixing | Ball End |
Models
| Claas |
|---|
| NECTIS 217 F, NECTIS 217 VE, NECTIS 217 VL, NECTIS 227 F, NECTIS 227 VE, NECTIS 227 VL, NECTIS 237 F, NECTIS 237 VE, NECTIS 237 VL, NECTIS 247 F, NECTIS 247 VE, NECTIS 247 VL, NECTIS 257 F, NECTIS 257 VE, NECTIS 257 VL, NECTIS 267 F, NECTIS 267 VE, NECTIS 267 VL, NEXOS 210 F, NEXOS 210 VE, NEXOS 210 VL, NEXOS 220 F, NEXOS 220 VE, NEXOS 220 VL, NEXOS 230 F, NEXOS 230 VE, NEXOS 230 VL, NEXOS 240 F, NEXOS 240 VE, NEXOS 240 VL, NEXOS 250 F, NEXOS 250 VL |
| John Deere |
| 1040 (40 Series), 1140 (40 Series), 1640 (40 Series), 2040 (40 Series), 2140 (40 Series), 3040 (40 Series), 5045E, 5050E, 5055E, 5065E, 5075E, 5076E, 5078E, 5080G, 5080GF, 5080GV, 5082E, 5083E, 5085E, 5090E, 5090G, 5090GF, 5090GV, 5093E, 5100E, 5100GF, 5100GV, 5101E, 5103E, 5215 (5015 Series), 5215V, 5300 (5000 Series), 5310 (5010 Series), 5315 (5015 Series), 5315V, 5400 (Forage Harvesters - 5000 Series), 5410 (5010 Series), 5500 (5000 Series), 5510 (5010 Series), 5515 (5015 Series), 5515V, 5615 (5015 Series), 5615F, 5615V, 5620 (20 Series), 5620 (5020 Series), 5720 (20 Series), 5720 (Forage Harvesters - 5020 Series), 5820 (20 Series), 5820 (Forage Harvesters - 5020 Series), 6090MC, 6090RC, 6100 (6000 Series), 6100MC, 6100RC, 6110 (6010 Series), 6110MC, 6110RC, 6200 (6000 Series), 6210 (6010 Series), 6230 (6030 Standard Series ), 6300 (6000 Series), 6310 (6010 Series), 940 (40 Series) |
