Hydraulic Top Link (Cat. 2/2) Ball/Ball |Cylinder 80mm Min. 620mm
Part Number: S.331281Categories: PTO (shaft), Linkage
Part Number: S.331281
Grade: Replacement
Part Details

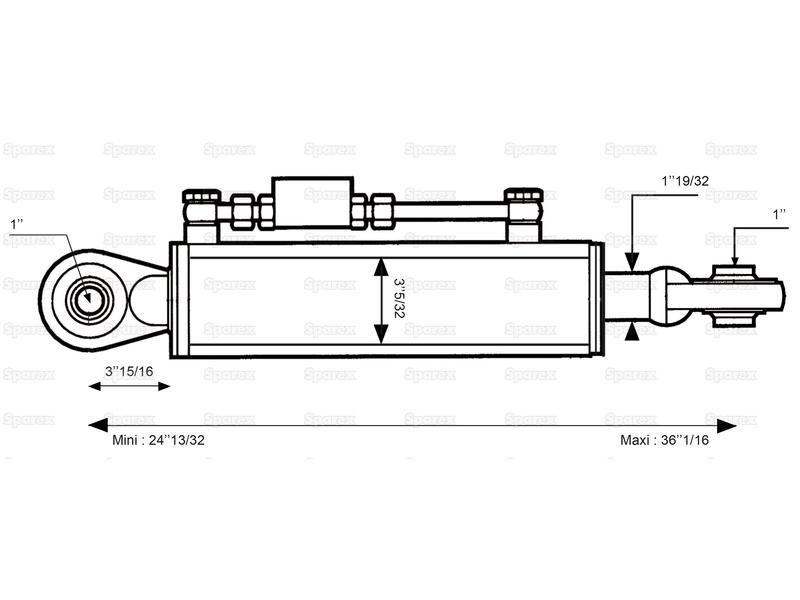

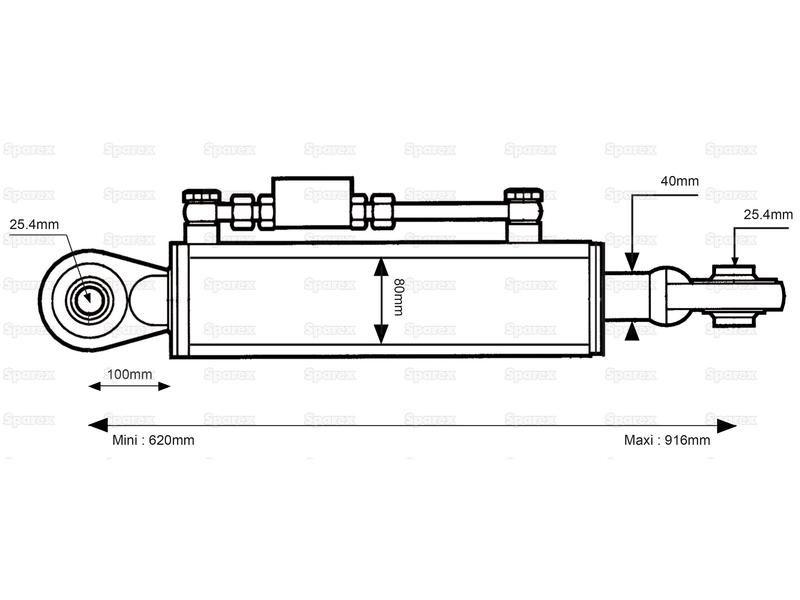

Hydraulic Top Link (Cat. 2/2) Ball/Ball |Cylinder 80mm Min. 620mm Min. Length : 620mm, Max. Length : 916mm, Supplied with : Hose Set.
Technical Information
| A mm | 100 |
| Brand | Sparex |
| Category | 2/2 |
| Category Implement End | 2 |
| Category Tractor End | 2 |
| Check Valve Position | Top |
| Cylinder Bore mm | 80 |
| Implement End | Ball |
| Lift kgs @180 bar | 6930 |
| Maximum Length mm | 916 |
| Minimum Length mm | 620 |
| Related Products | 32255, 33137, 33144, 33158, 39965, 39966, 39967, 39968 |
| Rod Ø mm | 40 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Supplied with | Hose Set |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 9240 |
| Tractor End | Ball |
| Tractor End Fixing | Fixed |
Models
| Massey Ferguson |
|---|
| 5410, 5420 (5400 Series), 5425 (5400 Series), 5430 (5400 Series), 5435 (5400 Series), 5435 (5400 Series), 5440 (5400 Series), 5445 (5400 Series), 5450 (5400 Series), 5455 (5400 Series), 5460 (5400 Series), 5465 (5400 Series), 5470 (5400 Series), 5475, 5480 (5400 Series), 5608, 5609, 5610, 5708, 5709, 5710, 5711 |
