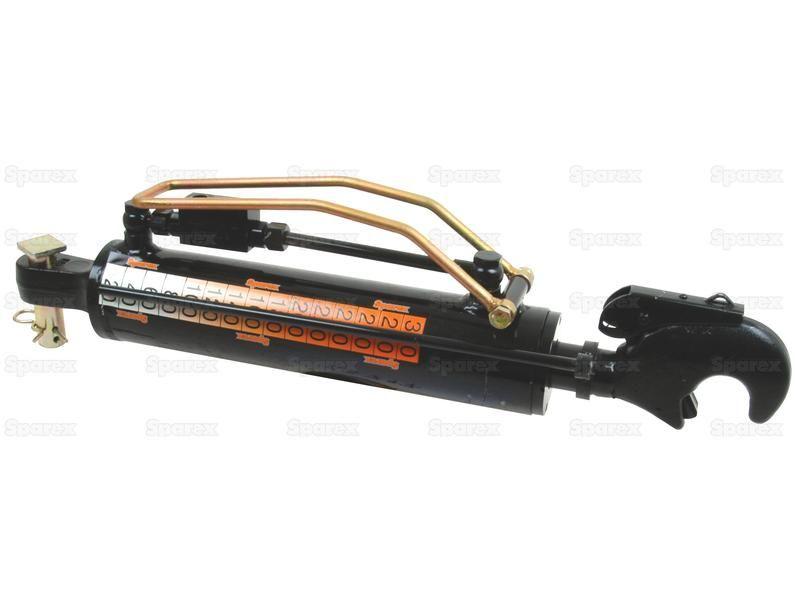

Hydraulic Top Link (Cat.-/2) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 580mm.
Part Number: S.56812Categories: PTO (shaft), Linkage
Part Number: S.56812
Grade: Replacement
Part Details

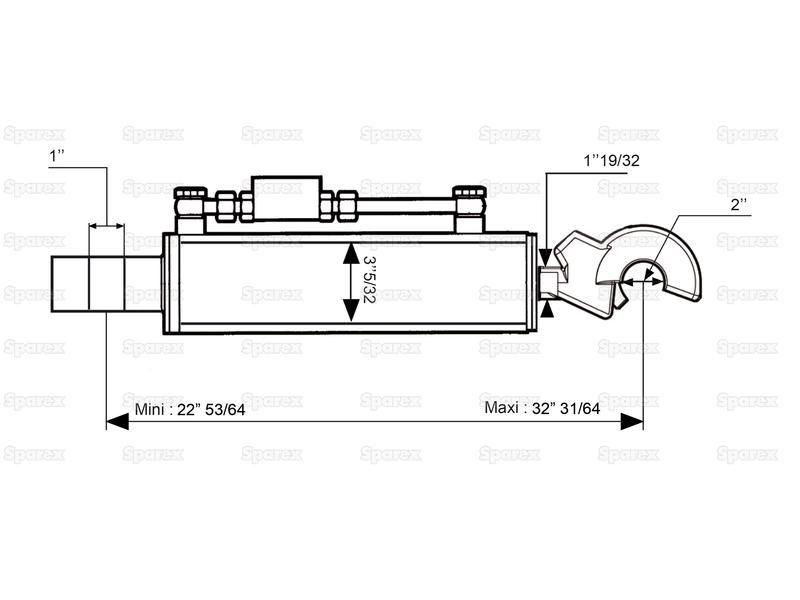

Hydraulic Top Link (Cat.-/2) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 580mm. Min. Length : 580mm, Max. Length : 825mm, Supplied with : Hose set, chain & ball, marker label without knuckle & pin.
Technical Information
| A mm | 150 |
| Brand | Sparex |
| Category | -/2 |
| Category Implement End | 2 |
| Check Valve Position | Top |
| Cylinder Bore mm | 80 |
| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 6930 |
| Loop option | 40 |
| Maximum Length mm | 825 |
| Minimum Length mm | 580 |
| Ram Stroke mm | 215 |
| Related Products | 10287, 10288, 10289, 10290, 10292, 32255, 33008, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 56815, 56817, 148199 |
| Rod Ø mm | 40 |
| Suitable for Tractors up to hp kW | 180hp (135kW) |
| Supplied with | Hose set, chain & ball, marker label without knuckle & pin |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 9240 |
