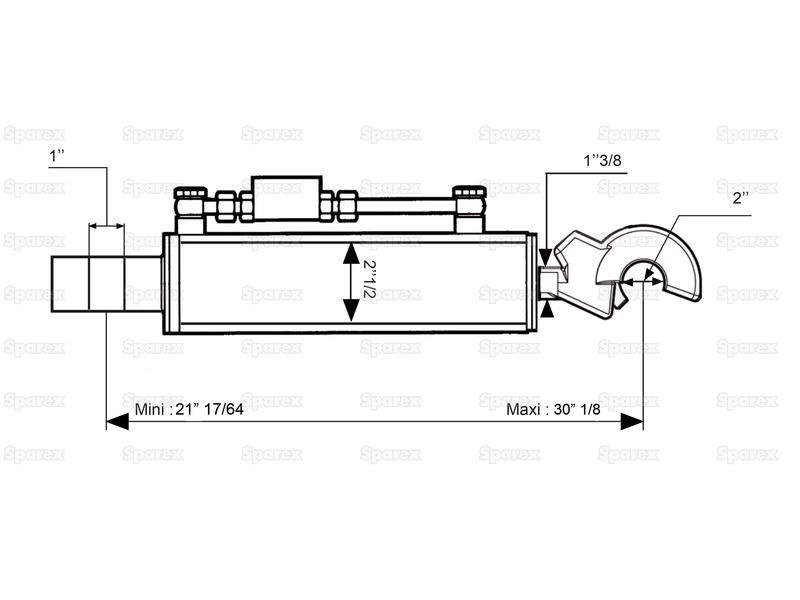

Hydraulic Top Link (Cat.-/2) and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 540mm.
Part Number: S.56791Categories: PTO (shaft), Linkage
Part Number: S.56791
Grade: Replacement
Part Details
Hydraulic Top Link (Cat.-/2) and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 540mm. Min. Length : 540mm, Max. Length : 765mm, Supplied with : Hose set, chain & ball, marker label without knuckle & pin.
Technical Information
| A mm | 120 |
| Brand | Sparex |
| Category | -/2 |
| Category Implement End | 2 |
| Check Valve Position | Top |
| Cylinder Bore mm | 63 |
| Implement End | Q.R CBM Hook |
| Lift kgs @180 bar | 3960 |
| Loop option | 35 |
| Maximum Length mm | 765 |
| Minimum Length mm | 540 |
| Ram Stroke mm | 225 |
| Related Products | 10287, 10288, 10289, 10290, 10292, 33008, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 56817, 148199 |
| Rod Ø mm | 35 |
| Suitable for Tractors up to hp kW | 100hp (74kW) |
| Supplied with | Hose set, chain & ball, marker label without knuckle & pin |
| Tariff Code | 8412212000 |
| Thrust kgs @180 bar | 5730 |
