Hydraulic 4-way Diverter Valve 1/2'' BSP open centre double acting
Part Number: S.8100Categories: Hydraulics
Part Number: S.8100
Grade: Replacement
Part Details

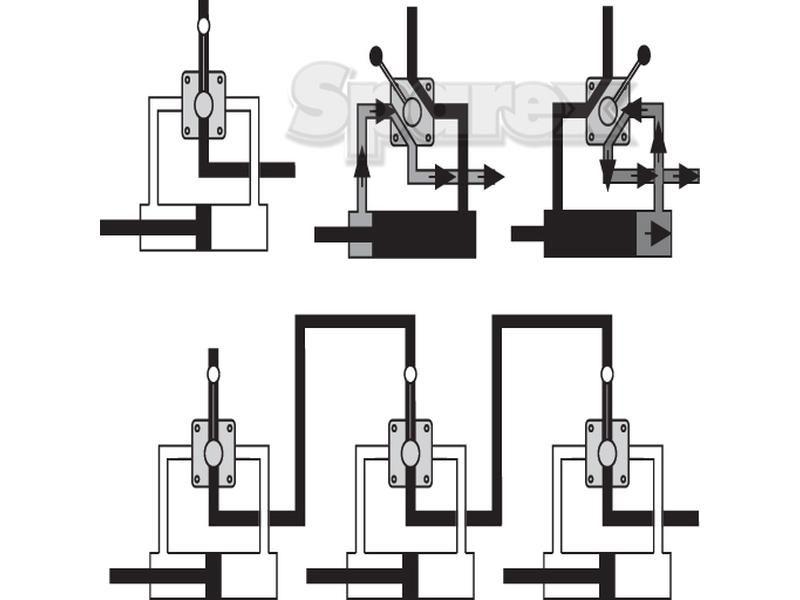

Hydraulic 4-way Diverter Valve 1/2'' BSP open centre double acting Rotary Valve - 4 port open centre - double acting. Ports = 1/2'' BSP. Flow Rate = 15 gpm (60 ltrs.). Max Pressure = 3000 psi (210kg/cm°²). Pressure Drop = 50psi (9kg/cm°²). Finish = Black Body. Spool and Handle Plated
Technical Information

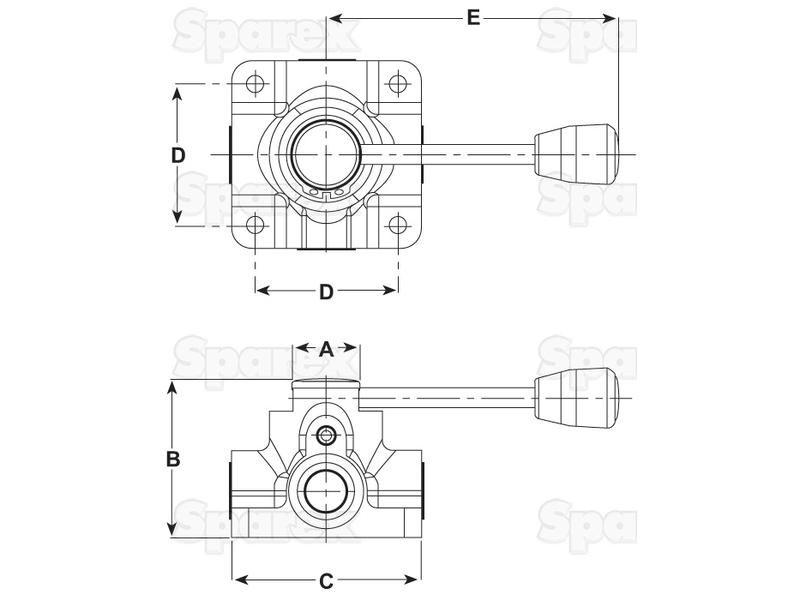

| A ins | 1 1/16 |
| A mm | 27 |
| B ins | 2 1/2 |
| B mm | 64 |
| Brand | Spenco |
| C ins | 3 |
| C mm | 76.2 |
| Colour | Black Body. Spool and Handle Plated |
| D ins | 2 1/4 |
| D mm | 57.5 |
| E ins | 4 49/64 |
| E mm | 122 |
| Finish | Black Body. Spool and Handle Plated |
| Flow Rate | 70 L/min (15.5 gal) |
| Hole Ø ins | 1/4 |
| Maximum pressure psi | 3,000psi (210kg/cm2) |
| Ports | 1/2'' BSP |
| Pressure Drop | 50psi (9kg/cm²) |
| Related Products | 3232, 8144 |
| Tariff Code | 8481201090 |
| Thread size | 1/2'' |
| Thread type | BSP |
| Type | Rotary |
