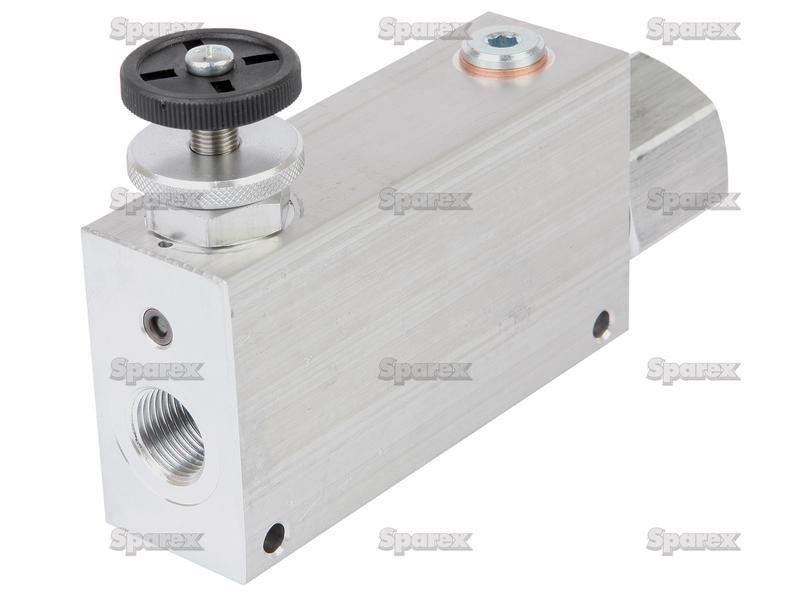

Hydraulic 3 way Priority Flow Control Valve 3/4''BSP Bondioli & Pavesi (RFP04)
Part Number: S.101677Categories: Hydraulics
Part Number: S.101677
Grade: Replacement
Part Details

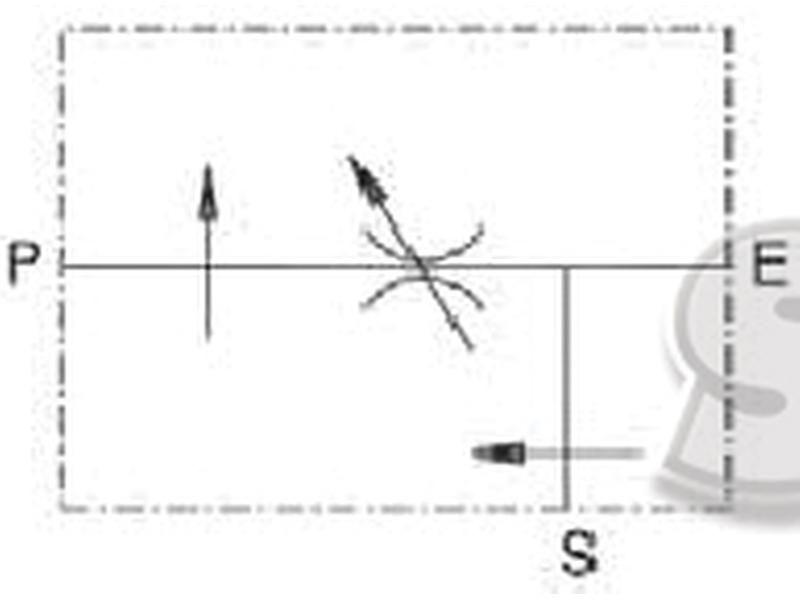

Hydraulic 3 way Priority Flow Control Valve 3/4''BSP Flow Control - Priority Flow - 3 Way - 3/4" BSP - Max Inlet 100LPM - Max Control 75LPM - 210 BAR
Technical Information
| Brand | MTC |
| Flow Rate | 100 L/min (21 gal) |
| Maximum Flow Inlet | 6 gallons / min, 28 litres / min |
| Maximum pressure bar | 210 |
| Maximum pressure psi | 3,045psi |
| Ports | 3/4" |
| Tariff Code | 8481201090 |
| Type | 3 Port |
Manufacturer Part Numbers
| Bondioli & Pavesi |
|---|
| RFP04 |
