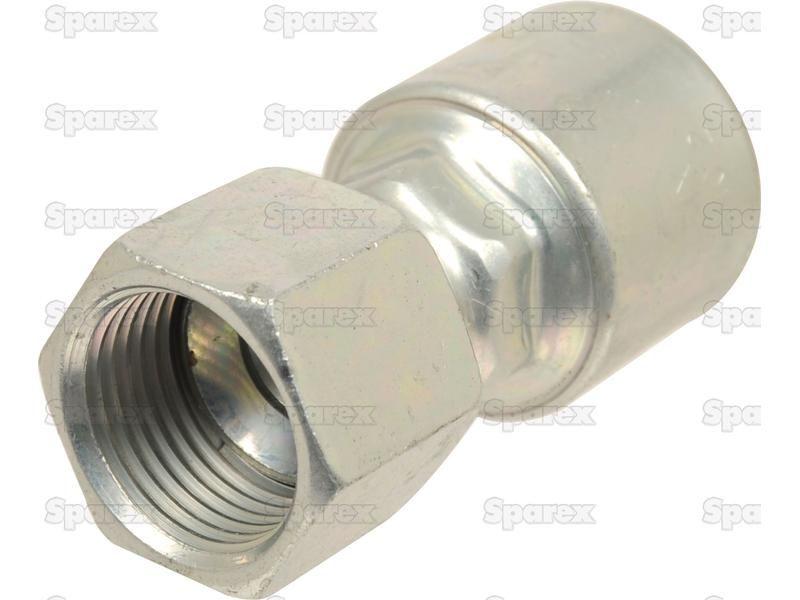

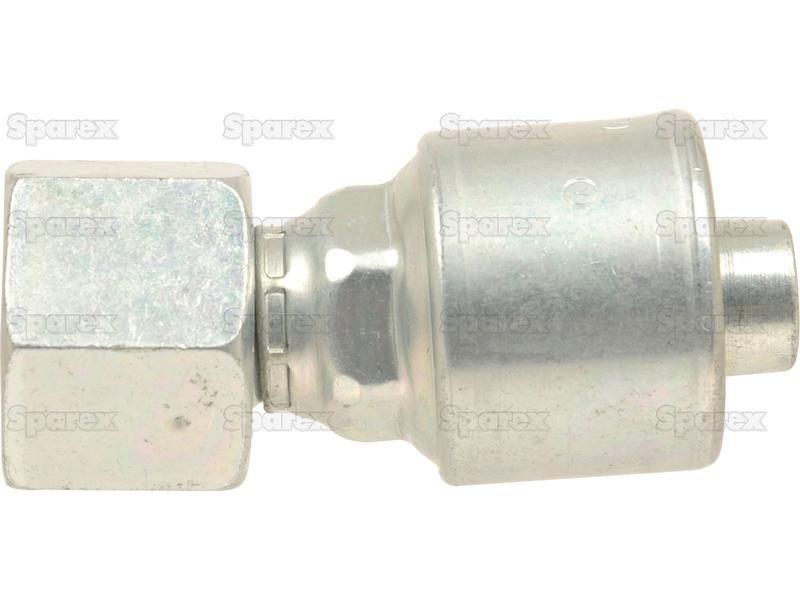

Gates JIC 37° Hose Insert 5/8'' x 1 1/16'''' Female Straight Swivel Gates (Belts) (10G12FJX)
Part Number: S.116199Categories: Hydraulics
Part Number: S.116199
Grade: Replacement
Part Details
Gates JIC 37° Hose Insert 5/8'' x 1 1/16'''' Female Straight Swivel A 66.4B 28.9H1 31.815H2 24
Technical Information
| A mm | 66.4 |
| B mm | 28.9 |
| Brand | Gates |
| Cone angle | 37° |
| Fitting | 1 Piece Fitting |
| H1 mm | 31.8 |
| H2 mm | 24 |
| Hose inner Ø ins | 5/8 |
| Hose inner Ø mm | 15.8 |
| Male Female | Female |
| Nominal I.D. | DN16 |
| Position | Straight Swivel |
| Reference | 10G12FJX |
| Series | MegaCrimp® |
| Tariff Code | 7307199000 |
| Thread size | 1 1/16'' |
| Thread type | JIC |
Manufacturer Part Numbers
| Gates (Belts) |
|---|
| 10G12FJX |
