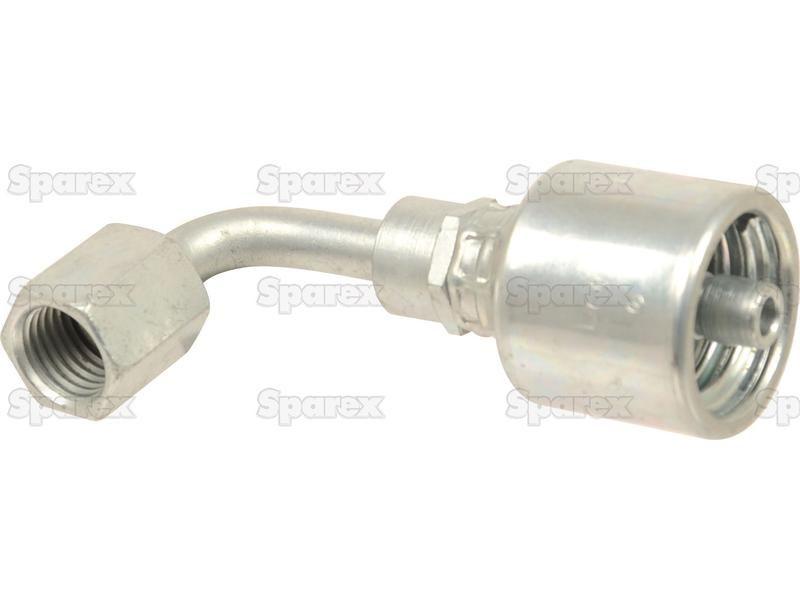

Gates JIC 37° Hose Insert 1/4'' x 1/2'''' Female 90° Swept Swivel Gates (Belts) (4G5FJX90M)

Part Number: S.116226Categories: Hydraulics
Gates JIC 37° Hose Insert 1/4'' x 1/2'''' Female 90° Swept Swivel Gates (Belts) (4G5FJX90M)
Gates JIC 37° Hose Insert 1/4'' x 1/2'''' Female 90° Swept Swivel Gates (Belts) (4G5FJX90M)
Gates JIC 37° Hose Insert 1/4'' x 1/2'''' Female 90° Swept Swivel Gates (Belts) (4G5FJX90M)

Part Number: S.116226

Grade: Replacement

Part Details

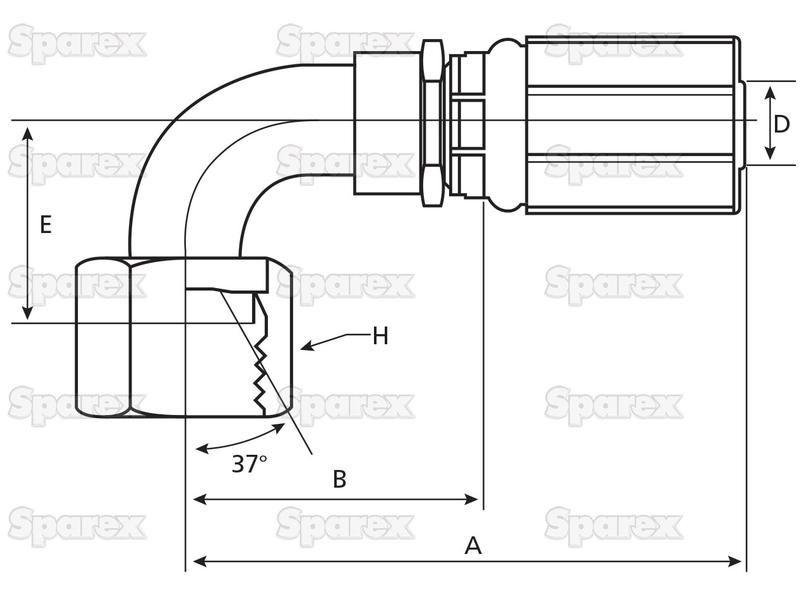

Gates JIC 37° Hose Insert 1/4'' x 1/2'''' Female 90° Swept Swivel A 57.2B 31.2E 32H 17

Technical Information

A mm 57.2
B mm 31.2
Brand Gates
Cone angle 37°
E mm 32
Fitting 1 Piece Fitting
H mm 17
Hose inner Ø ins 1/4
Hose inner Ø mm 6.3
Male Female Female
Nominal I.D. DN06
Position 90° Swept Swivel
Reference 4G5FJX90M
Series MegaCrimp®
Tariff Code 7307199000
Thread size 1/2''
Thread type JIC

Manufacturer Part Numbers

Gates (Belts)
4G5FJX90M
