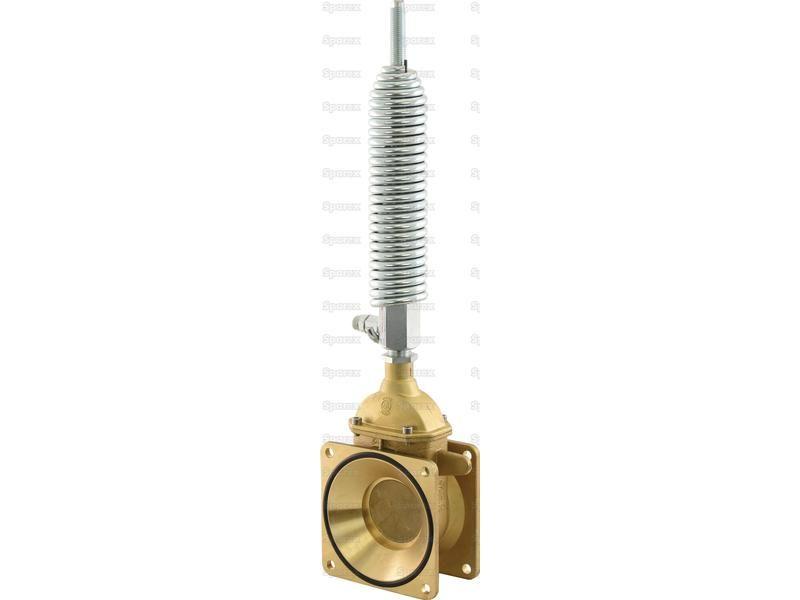

Gate valve with oildynamic ram with spring - Double flanged - Heavy duty 4''

Part Number: S.104918Categories: Muck Spreader
Gate valve with oildynamic ram with spring - Double flanged - Heavy duty 4''
Gate valve with oildynamic ram with spring - Double flanged - Heavy duty 4''
Gate valve with oildynamic ram with spring - Double flanged - Heavy duty 4''
Gate valve with oildynamic ram with spring - Double flanged - Heavy duty 4''

Part Number: S.104918

Grade: Replacement

Part Details

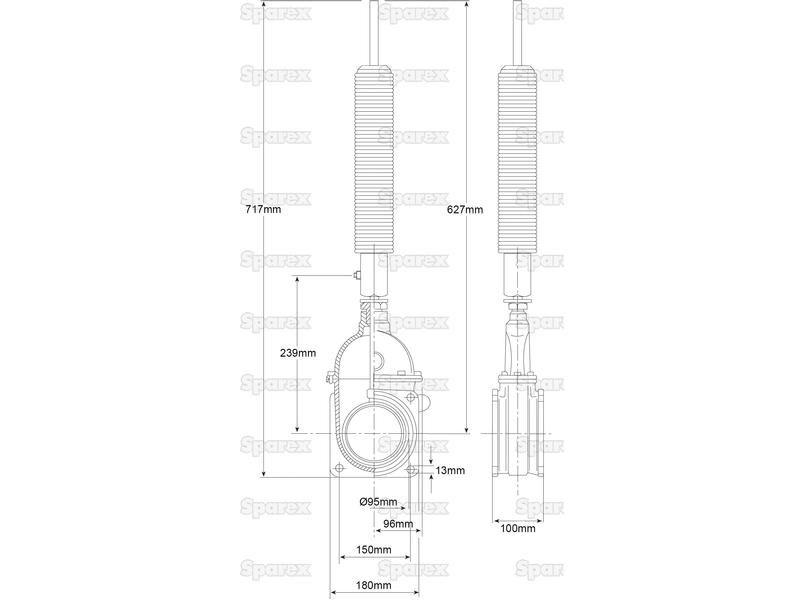

Gate valve with oildynamic ram with spring - Double flanged - Heavy duty 4'' Max. Pressure: 4 BarMax. Pressure : 60 psiHeight: 717mm Width 180mmDepth : 100mm Hole centres : 150x150mm Temperature range : -15°C/+80°C

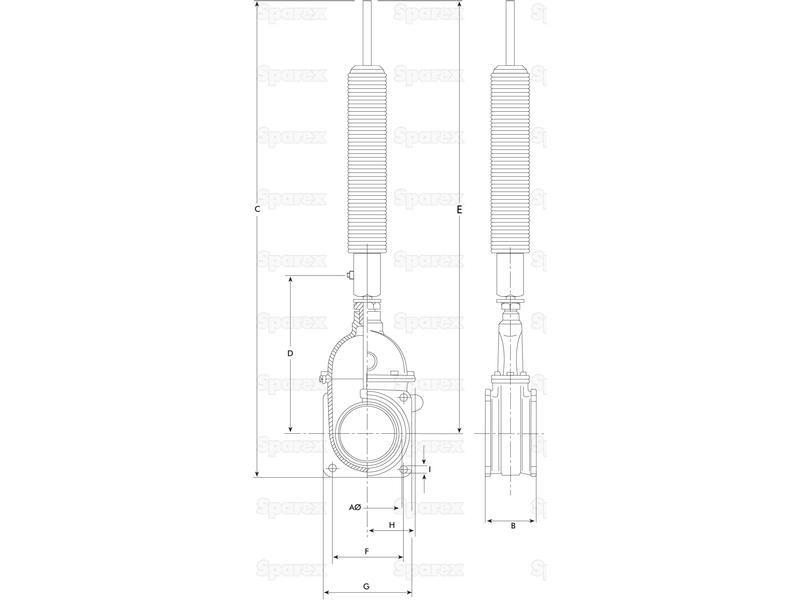

Technical Information

Ø ins 4
Ø mm 95
A Ø ins 4
A Ø mm 95
B mm 100
Brand Metaltecnica
C mm 717
D mm 239
Depth mm 100
Duty Heavy
E mm 627
F mm 150
G mm 180
H mm 96
Height mm 717
Hole Ø mm 13
Hole centres mm 150x150
I mm 13
Maximum pressure bar 4
Maximum pressure psi 60
Related Products 104903, 11654, 79071, 79074, 79118, 79218
Size ins 4
Tariff Code 8436990000
Temperature Range -15°C/+80°C
Type Double Flanged
Width mm 180
