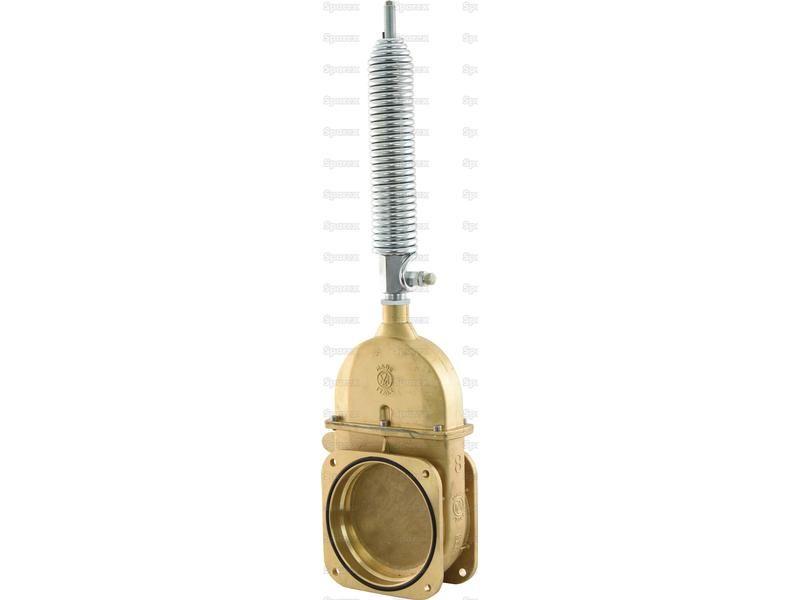

Gate valve with oildynamic ram with spring - Double flanged 8''

Part Number: S.104941Categories: Muck Spreader
Gate valve with oildynamic ram with spring - Double flanged 8''
Gate valve with oildynamic ram with spring - Double flanged 8''
Gate valve with oildynamic ram with spring - Double flanged 8''
Gate valve with oildynamic ram with spring - Double flanged 8''

Part Number: S.104941

Grade: Replacement

Part Details

Gate valve with oildynamic ram with spring - Double flanged 8'' Max. Pressure: 1.5 BarMax. Pressure : 22 psiHeight: 919mm Width 228mmDepth : 112mm Hole centres : 180x180mm Temperature range : -15°C/+80°C

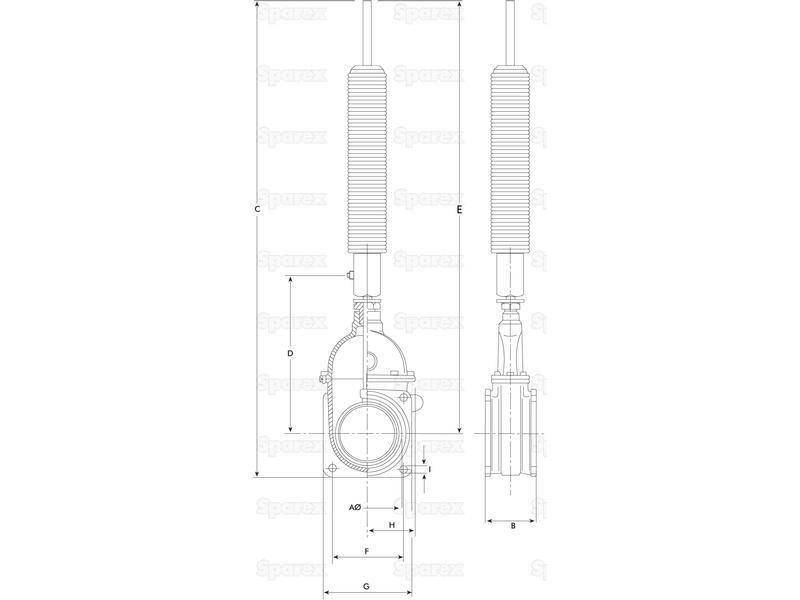

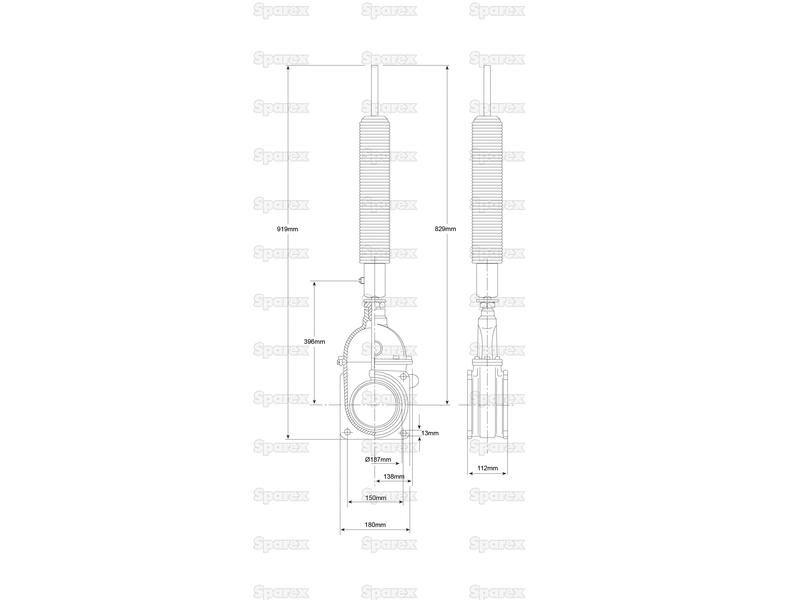

Technical Information

Ø ins 8
Ø mm 187
A Ø ins 8
A Ø mm 187
B mm 112
Brand Metaltecnica
C mm 919
D mm 396
Depth mm 112
E mm 829
F mm 180
G mm 228
H mm 138
Height mm 919
Hole Ø mm 13
Hole centres mm 180x180
I mm 13
Maximum pressure bar 1.5
Maximum pressure psi 22
Related Products 104901, 104947, 104948, 11654, 22802, 79219
Size ins 8
Tariff Code 8436990000
Temperature Range -15°C/+80°C
Type Double Flanged
Width mm 228
