Gate valve with oildynamic ram with spring - Double flanged 6''

Part Number: S.104936Categories: Muck Spreader
Gate valve with oildynamic ram with spring - Double flanged 6''
Gate valve with oildynamic ram with spring - Double flanged 6''
Gate valve with oildynamic ram with spring - Double flanged 6''

Part Number: S.104936

Grade: Replacement

Part Details

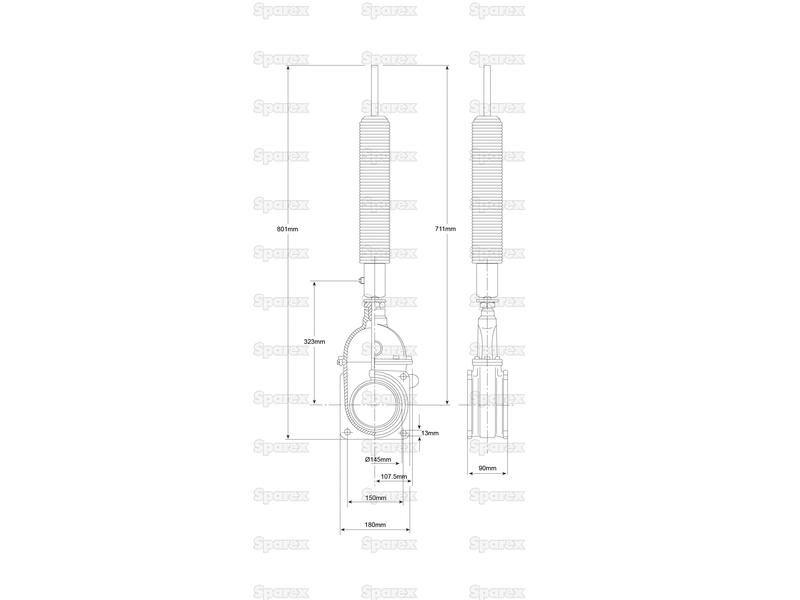

Gate valve with oildynamic ram with spring - Double flanged 6'' Max. Pressure: 3 BarMax. Pressure : 45 psiHeight: 801mm Width 180mmDepth : 90mm Hole centres : 150x150mm Temperature range : -15°C/+80°C

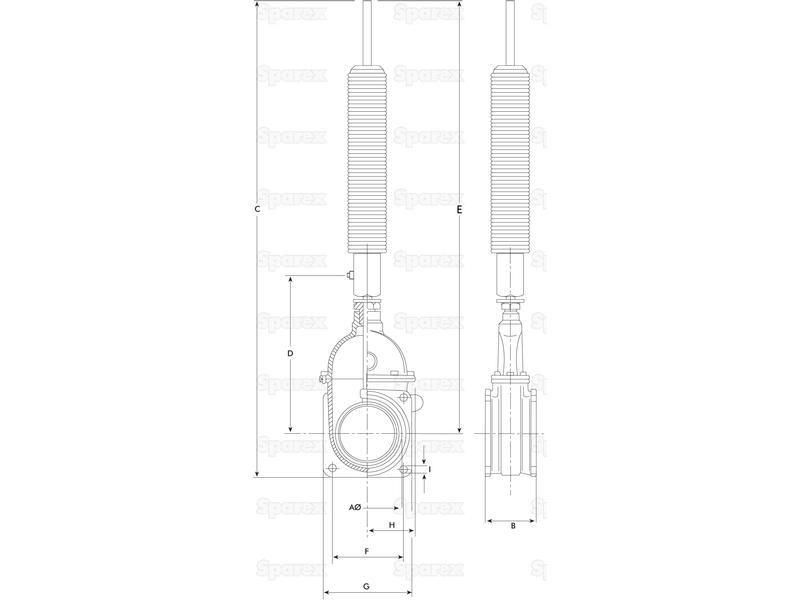

Technical Information

Ø ins 6
Ø mm 145
A Ø ins 6
A Ø mm 145
B mm 90
Brand Metaltecnica
C mm 801
D mm 323
Depth mm 90
E mm 711
F mm 150
G mm 180
H mm 107.5
Height mm 801
Hole Ø mm 13
Hole centres mm 150x150
I mm 13
Maximum pressure bar 3
Maximum pressure psi 45
Related Products 11654, 79071, 79074, 79120, 79218
Size ins 6
Tariff Code 8436990000
Temperature Range -15°C/+80°C
Type Double Flanged
Width mm 180
