Gate valve with oildynamic ram with spring - Double flanged 4''

Part Number: S.104934Categories: Muck Spreader
Gate valve with oildynamic ram with spring - Double flanged 4''
Gate valve with oildynamic ram with spring - Double flanged 4''
Gate valve with oildynamic ram with spring - Double flanged 4''

Part Number: S.104934

Grade: Replacement

Part Details

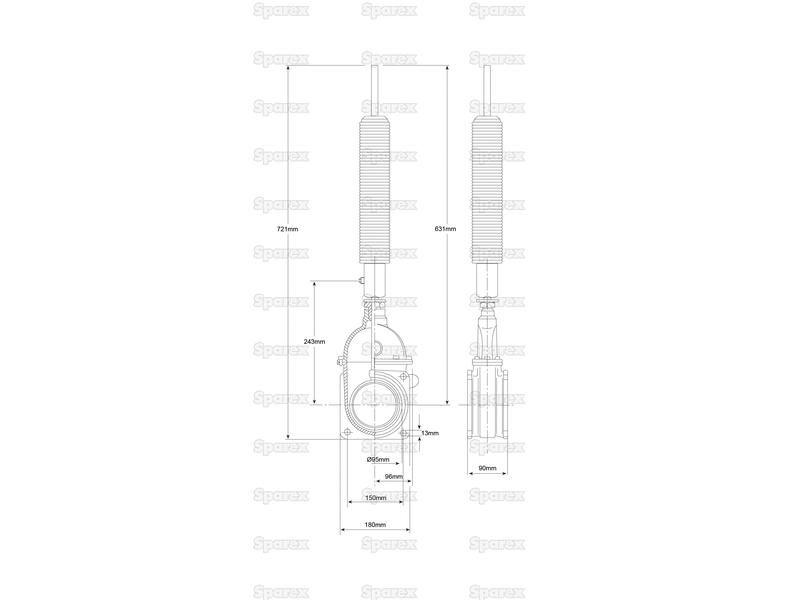

Gate valve with oildynamic ram with spring - Double flanged 4'' Max. Pressure: 3 BarMax. Pressure : 45 psiHeight: 721mm Width 180mmDepth : 90mm Hole centres : 150x150mm Temperature range : -15°C/+80°C

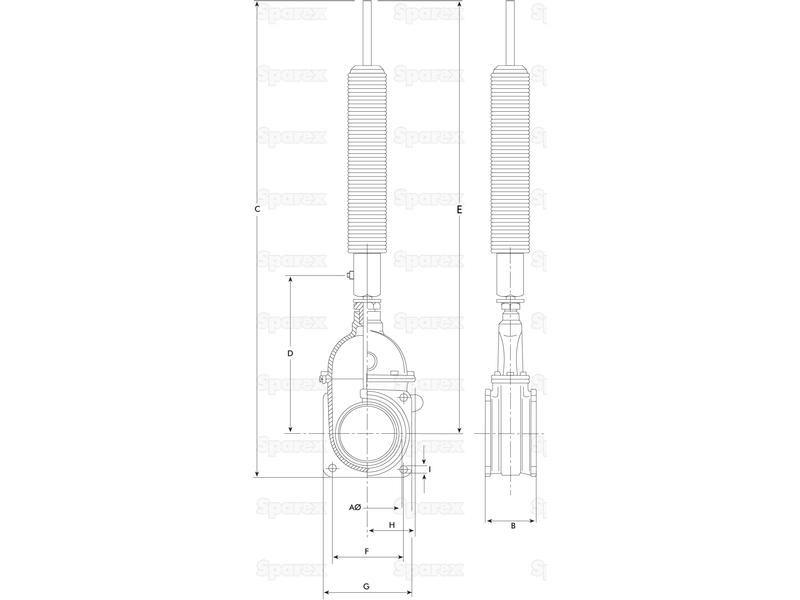

Technical Information

Ø ins 4
Ø mm 95
A Ø ins 4
A Ø mm 95
B mm 90
Brand Metaltecnica
C mm 721
D mm 243
Depth mm 90
E mm 631
F mm 150
G mm 180
H mm 96
Height mm 721
Hole Ø mm 13
Hole centres mm 150x150
I mm 13
Maximum pressure bar 3
Maximum pressure psi 45
Related Products 11654, 59467, 79071, 79074, 79118, 79218
Size ins 4
Tariff Code 8436990000
Temperature Range -15°C/+80°C
Type Double Flanged
Width mm 180
