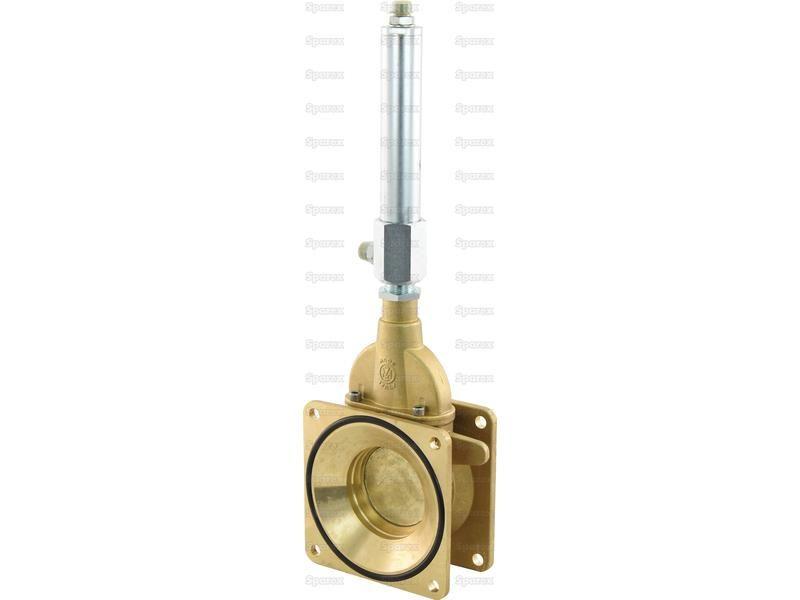

Gate valve with oildynamic double acting ram - Double flanged 4''

Part Number: S.104920Categories: Muck Spreader
Gate valve with oildynamic double acting ram - Double flanged 4''
Gate valve with oildynamic double acting ram - Double flanged 4''
Gate valve with oildynamic double acting ram - Double flanged 4''
Gate valve with oildynamic double acting ram - Double flanged 4''

Part Number: S.104920

Grade: Replacement

Part Details

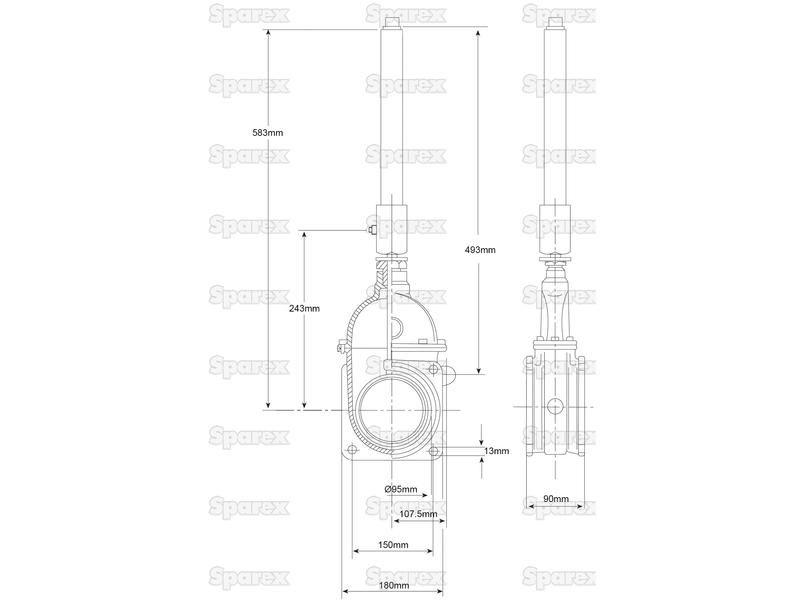

Gate valve with oildynamic double acting ram - Double flanged 4'' Max. Pressure: 3 BarMax. Pressure : 45 psiHeight: 583mm Width 180mmDepth : 90mm Hole centres : 150x150mm Temperature range : -15°C/+80°C

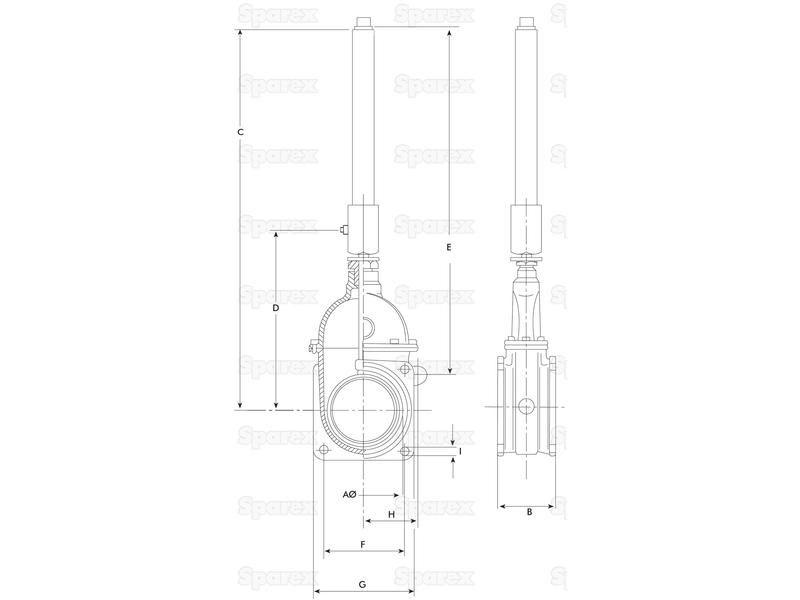

Technical Information

Ø ins 4
Ø mm 95
A Ø ins 4
A Ø mm 95
B mm 90
Brand Metaltecnica
C mm 583
D mm 243
Depth mm 90
E mm 493
F mm 150
G mm 180
H mm 107.5
Height mm 583
Hole Ø mm 13
Hole centres mm 150x150
I mm 13
Maximum pressure bar 3
Maximum pressure psi 45
Related Products 11654, 79071, 79074, 79218
Size ins 4
Tariff Code 8436990000
Temperature Range -15°C/+80°C
Type Double Flanged
Width mm 180
