Gate valve with gas hydraulic ram - Double flanged 6''
Part Number: S.22924Categories: Muck Spreader
Part Number: S.22924
Grade: Replacement
Part Details

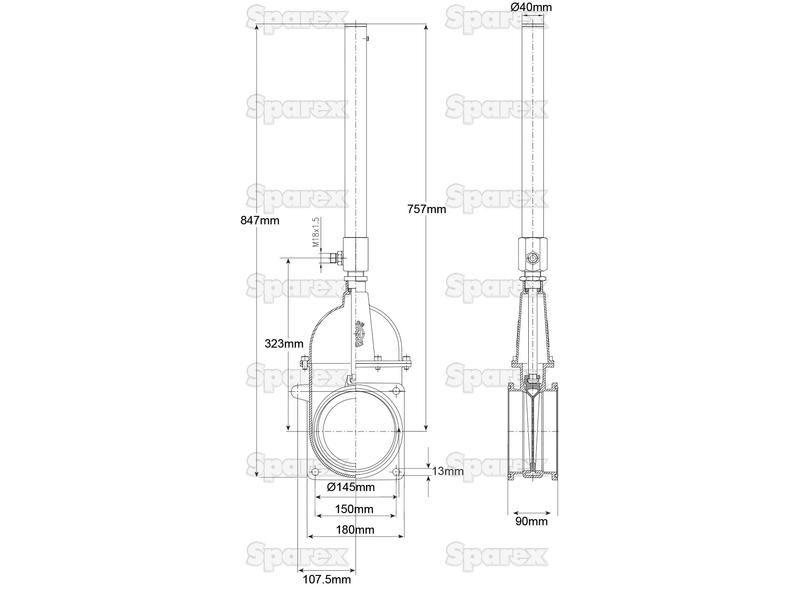

Gate valve with gas hydraulic ram - Double flanged 6'' Max. Pressure: 3 BarMax. Pressure : 45 psiHeight: 847mm Width 180mmDepth : 90mm Hole centres : 150x150mm Temperature range : -15°C/+80°C
Technical Information

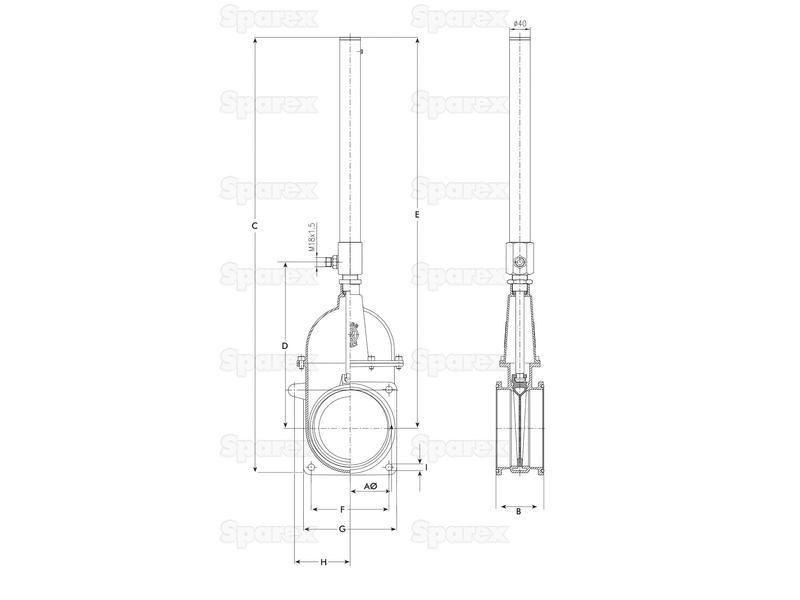

| Ø ins | 6 |
| Ø mm | 145 |
| A Ø ins | 6 |
| A Ø mm | 145 |
| B mm | 90 |
| Brand | Metaltecnica |
| C mm | 847 |
| D mm | 323 |
| Depth mm | 90 |
| E mm | 757 |
| F mm | 150 |
| G mm | 180 |
| H mm | 107.5 |
| Height mm | 847 |
| Hole Ø mm | 13 |
| Hole centres mm | 150x150 |
| I mm | 13 |
| Maximum pressure bar | 3 |
| Maximum pressure psi | 45 |
| Related Products | 11654, 22923, 79071, 79074, 79218 |
| Size ins | 6 |
| Tariff Code | 8436990000 |
| Temperature Range | -15°C/+80°C |
| Type | Double Flanged |
| Width mm | 180 |
