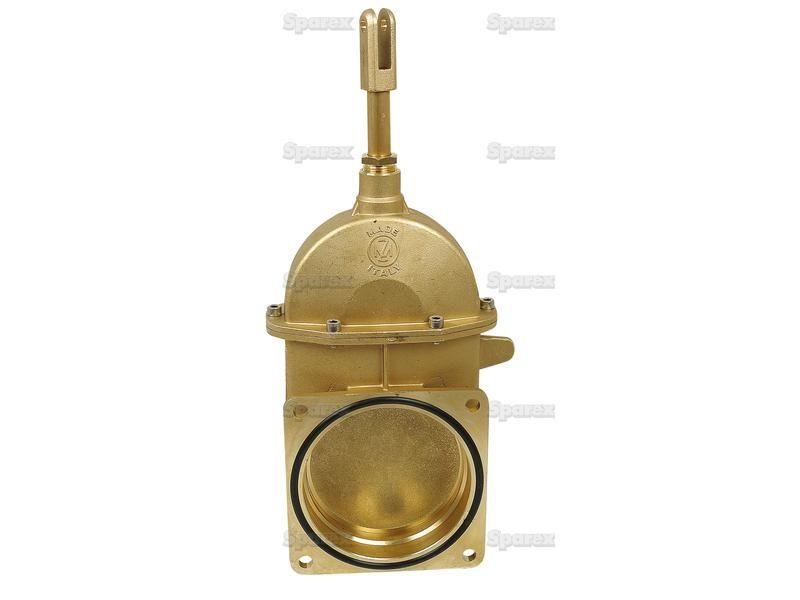

Gate valve - Double flanged - Heavy duty 6''

Part Number: S.59477Categories: Muck Spreader
Gate valve - Double flanged - Heavy duty 6''
Gate valve - Double flanged - Heavy duty 6''
Gate valve - Double flanged - Heavy duty 6''
Gate valve - Double flanged - Heavy duty 6''
Gate valve - Double flanged - Heavy duty 6''

Part Number: S.59477

Grade: Replacement

Part Details

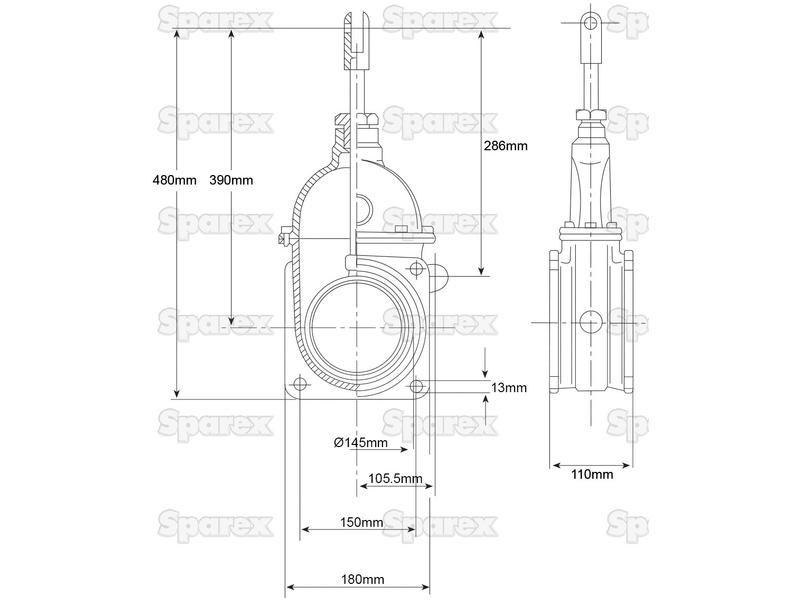

Gate valve - Double flanged - Heavy duty 6'' Max. Pressure: 4 BarMax. Pressure : 60 psiHeight: 480mm Width 180mmDepth : 110mm Hole centres : 150x150mm Temperature range : -15°C/+80°C

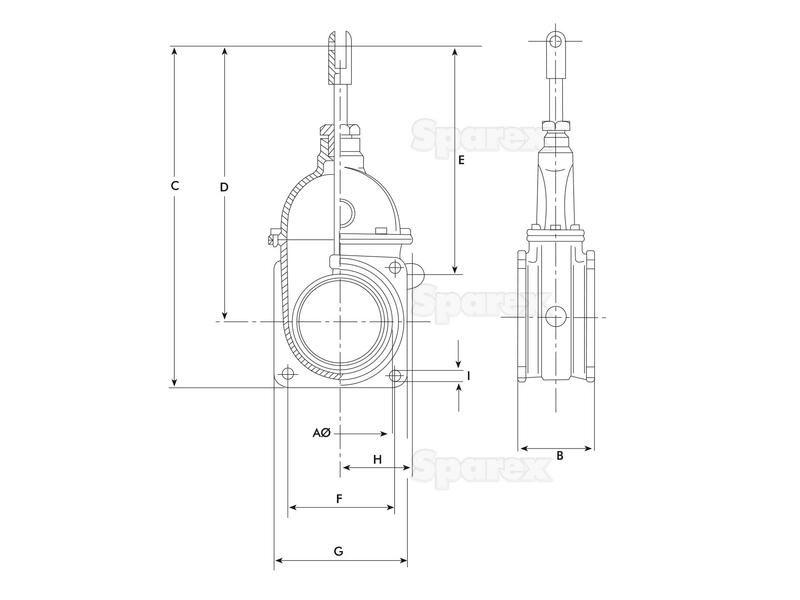

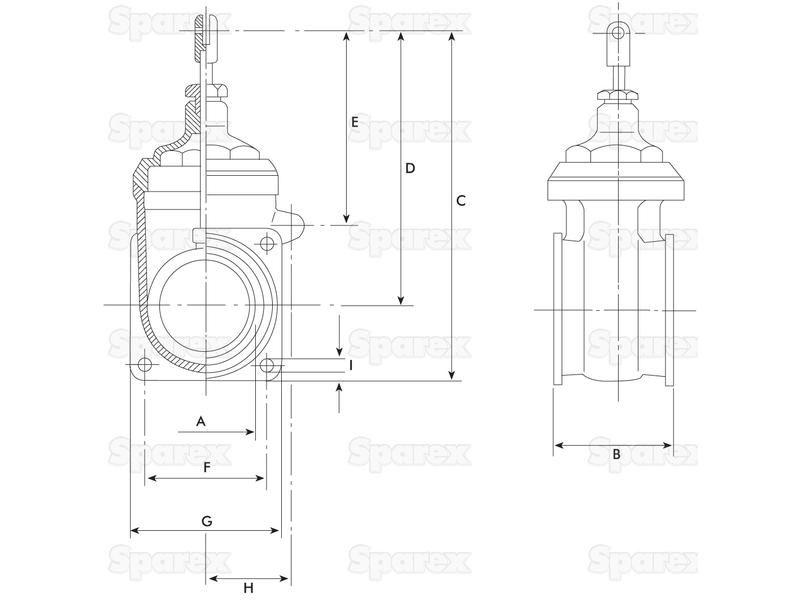

Technical Information

Ø ins 6
Ø mm 145
A Ø ins 6
A Ø mm 145
B mm 110
Brand Metaltecnica
C mm 480
D mm 390
Depth mm 110
Duty Heavy
E mm 286
F mm 150
G mm 180
H mm 105.5
Height mm 480
Hole Ø mm 13
Hole centres mm 150x150
I mm 13
Maximum pressure bar 4
Maximum pressure psi 60
Related Products 11654, 22923, 79093, 79120, 79218, 79296, 79328, 79331
Size ins 6
Tariff Code 8436990000
Temperature Range -15°C/+80°C
Type Double Flanged
Width mm 180
