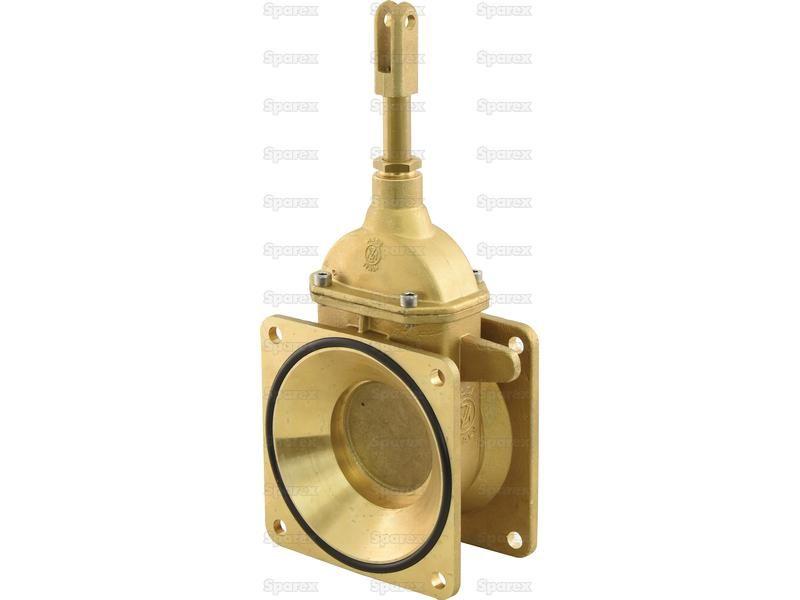

Gate valve - Double flanged - Heavy duty 4''

Part Number: S.104903Categories: Muck Spreader
Gate valve - Double flanged - Heavy duty 4''
Gate valve - Double flanged - Heavy duty 4''
Gate valve - Double flanged - Heavy duty 4''
Gate valve - Double flanged - Heavy duty 4''

Part Number: S.104903

Grade: Replacement

Part Details

Gate valve - Double flanged - Heavy duty 4'' Max. Pressure: 4 BarMax. Pressure : 60 psiHeight: 398mm Width 180mmDepth : 100mm Hole centres : 150x150mm Temperature range : -15°C/+80°C

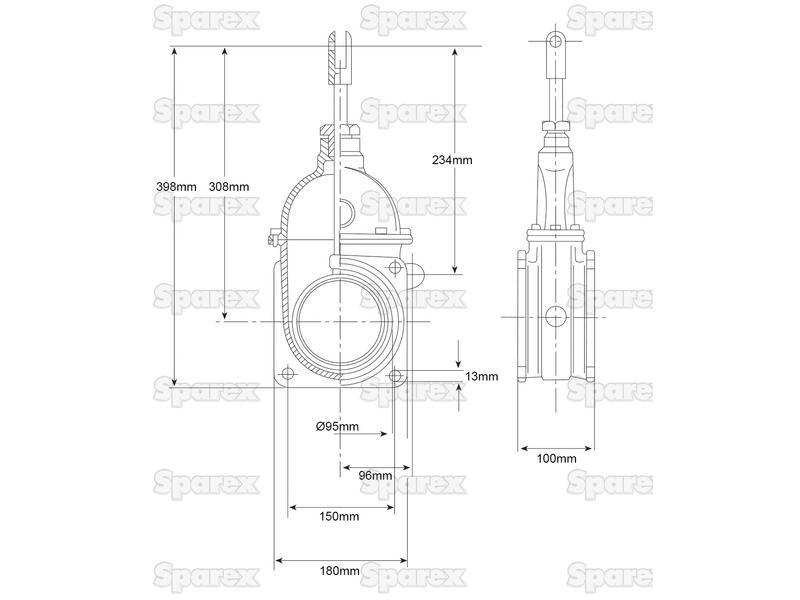

Technical Information

Ø ins 4
Ø mm 95
A Ø ins 4
A Ø mm 95
B mm 100
Brand Metaltecnica
C mm 398
D mm 308
Depth mm 100
Duty Heavy
E mm 234
F mm 150
G mm 180
H mm 96
Height mm 398
Hole Ø mm 13
Hole centres mm 150x150
I mm 13
Maximum pressure bar 4
Maximum pressure psi 60
Related Products 11654, 22928, 79071, 79074, 79118, 79218, 79296
Size ins 4
Tariff Code 8436990000
Temperature Range -15°C/+80°C
Type Double Flanged
Width mm 180
