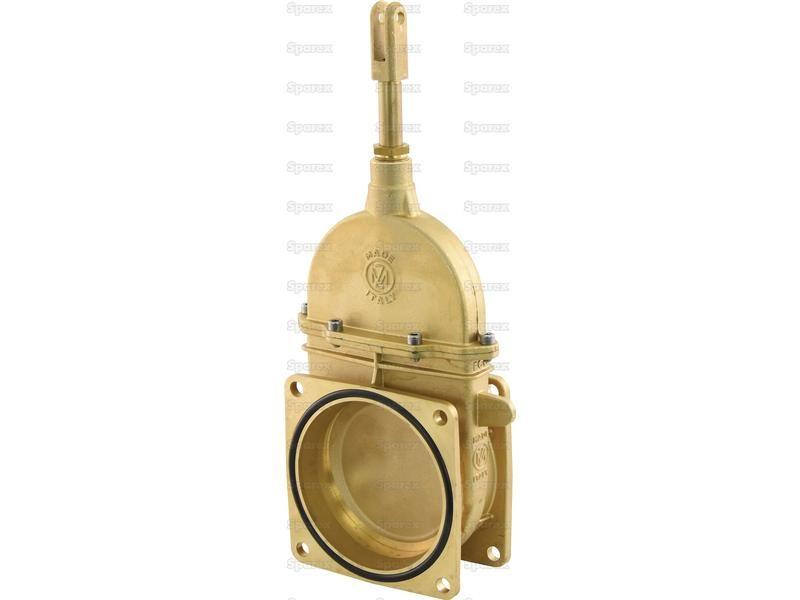

Gate valve - Double flanged 6''
Part Number: S.72331Categories: Muck Spreader
Part Number: S.72331
Grade: Replacement
Part Details

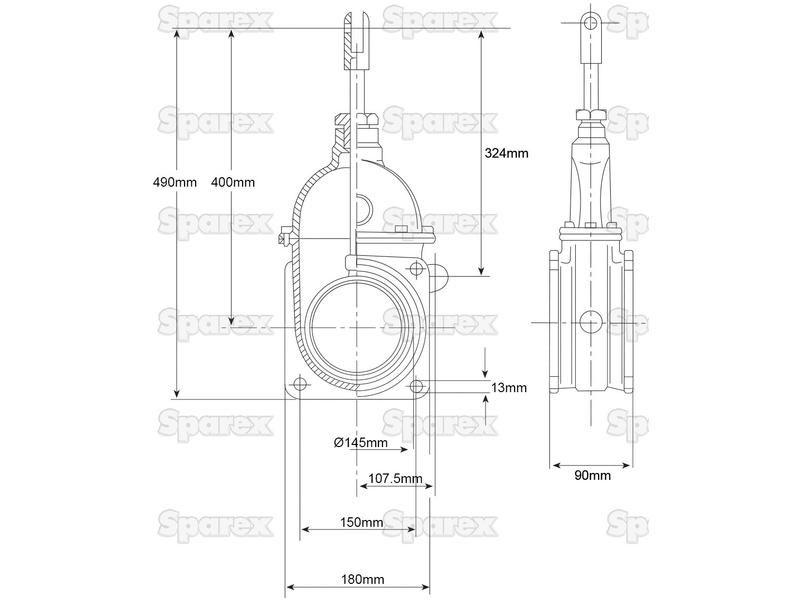

Gate valve - Double flanged 6'' Max. Pressure: 2.5 BarMax. Pressure : 35 psiHeight: 490mm Width 180mmDepth : 90mm Hole centres : 150x150mm Temperature range : -15°C/+80°C

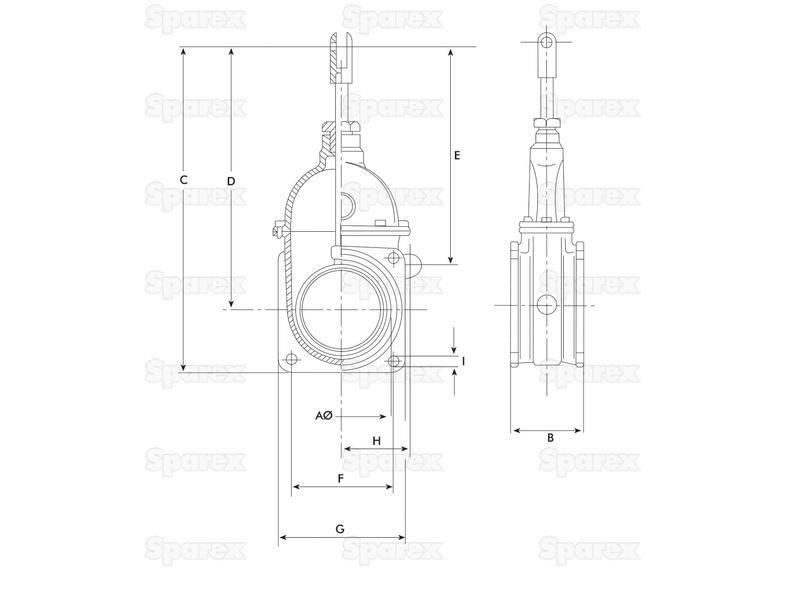

Technical Information
| Ø ins | 6 |
| Ø mm | 145 |
| A Ø ins | 6 |
| A Ø mm | 145 |
| B mm | 90 |
| Brand | Metaltecnica |
| C mm | 490 |
| D mm | 400 |
| Depth mm | 90 |
| E mm | 324 |
| F mm | 150 |
| G mm | 180 |
| H mm | 107.5 |
| Height mm | 490 |
| Hole Ø mm | 13 |
| Hole centres mm | 150x150 |
| I mm | 13 |
| Maximum pressure bar | 2.5 |
| Maximum pressure psi | 35 |
| Related Products | 11654, 22923, 22928, 79071, 79074, 79093, 79098, 79120, 79218, 79296 |
| Size ins | 6 |
| Tariff Code | 8436990090 |
| Temperature Range | -15°C/+80°C |
| Type | Double Flanged |
| Width mm | 180 |
