Gate valve - Double flanged 5''
Part Number: S.59468Categories: Muck Spreader
Part Number: S.59468
Grade: Replacement
Part Details

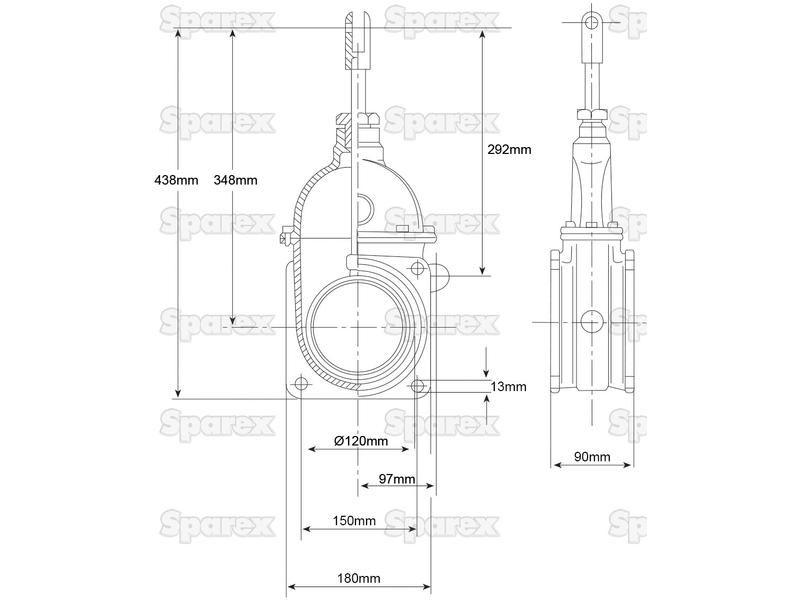

Gate valve - Double flanged 5'' Max. Pressure: 3 BarMax. Pressure : 45 psiHeight: 438mm Width 180mmDepth : 90mm Hole centres : 150x150mm Temperature range : -15°C/+80°C

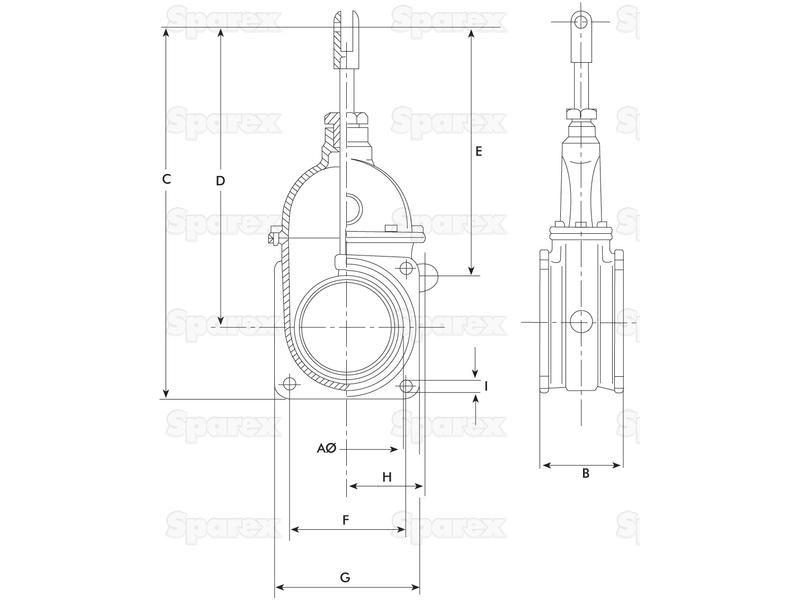

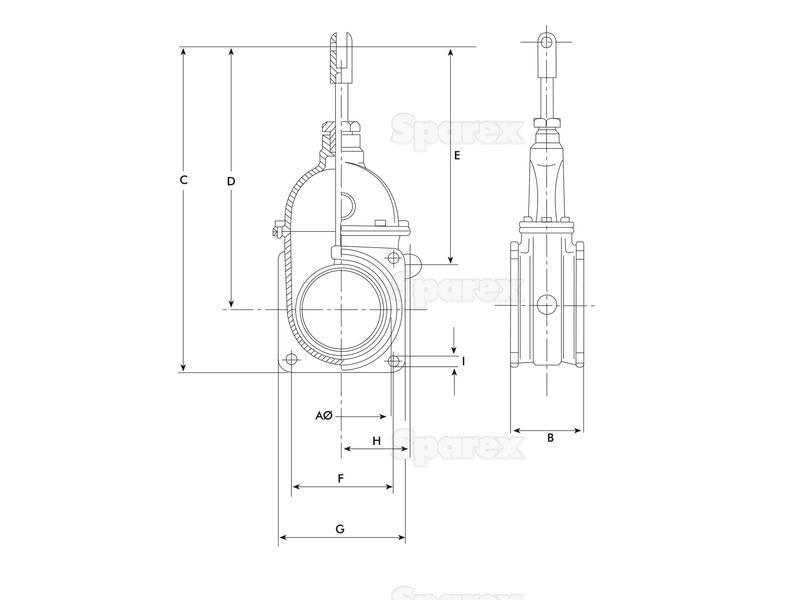

Technical Information
| Ø ins | 5 |
| Ø mm | 120 |
| A Ø ins | 5 |
| A Ø mm | 120 |
| B mm | 90 |
| Brand | Metaltecnica |
| C mm | 438 |
| D mm | 348 |
| Depth mm | 90 |
| E mm | 292 |
| F mm | 150 |
| G mm | 180 |
| H mm | 97 |
| Height mm | 438 |
| Hole Ø mm | 13 |
| Hole centres mm | 150x150 |
| I mm | 13 |
| Maximum pressure bar | 3 |
| Maximum pressure psi | 45 |
| Related Products | 11654, 22923, 22928, 79071, 79074, 79119, 79218, 79296 |
| Size ins | 5 |
| Tariff Code | 8436990000 |
| Temperature Range | -15°C/+80°C |
| Type | Double Flanged |
| Width mm | 180 |
