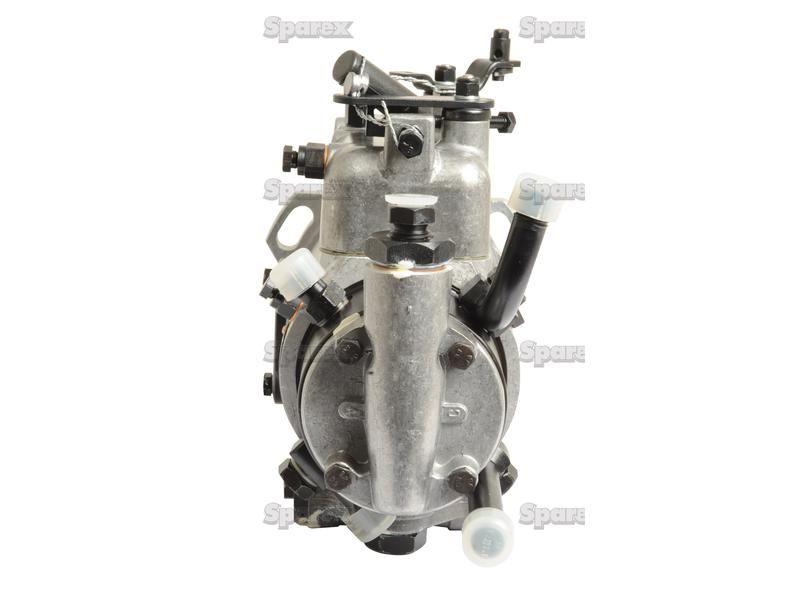

Fuel Injection Pump for Massey Ferguson 698 (600 Series)
Part Number: S.105957Categories: Fuel Injection
Part Number: S.105957
Grade: Replacement
Part Details
Fuel Injection Pump Perkins A4.318, A4.318.2
Technical Information
| Automatic advance range | +2° to +6° |
| Temperature range | -20°C to +77°C |
| Pressure (bar) | 0.1 |
| Maximum Plunger Stroke (mm) | 1.5 |
| Related products | 105973,44020,44021 |
| Number of Plungers | 2 |
| Maximum Power per Engine Cylinder (kw) | 20 |
| Maximum Pump Speed rpm | 2500 |
| Number of Pumping Outlets | 4 |
| Maximum Peak Injection Pressure (bar) | 500 |
| Plunger Diameter (mm) | 8.5 |
| Tariff Code | 8413308090 |
| Engine Model | A4.318, A4.318.2 |
| Pump rotation | Clockwise |
| Fuel lubrificated | For test: Calibration Oil ISO4113 For operate: diesel fuel |
| Engine Manufacturer | Perkins |
| Brand | Sparex |
| Mechanical Governor | Yes |
| Hydraulic Timing Device | Yes |
Manufacturer Part Numbers
| CAV |
|---|
| 3342F410, 3342F411, CAV3842F411 |
| Lucas |
| CAV3842F411 |
| Massey Ferguson |
| 1446846M91, 1447605M91 |
