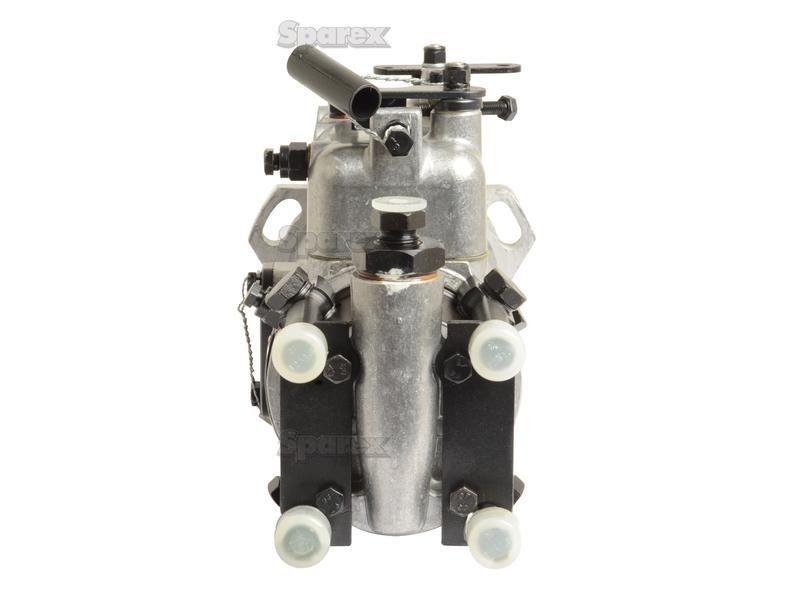

Fuel Injection Pump for Massey Ferguson 65 (Pre 100 Series (1947 - 65))
Part Number: S.105952Categories: Fuel Injection
Part Number: S.105952
Grade: Replacement
Part Details
Fuel Injection Pump Perkins AD4.203
Technical Information
| Temperature range | -20°C to +72°C |
| Pressure (bar) | 0.1 |
| Maximum Plunger Stroke (mm) | 1.5 |
| Related products | 105972,24893,24894,24895,44020,44021 |
| Number of Plungers | 2 |
| Maximum Power per Engine Cylinder (kw) | 20 |
| Maximum Pump Speed rpm | 2500 |
| Number of Pumping Outlets | 4 |
| Maximum Peak Injection Pressure (bar) | 500 |
| Plunger Diameter (mm) | 8.5 |
| Tariff Code | 8413308090 |
| Engine Model | AD4.203 |
| Pump rotation | Anti-Clockwise |
| Fuel lubrificated | For test: Calibration Oil ISO4113 For operate: diesel fuel |
| Automatic advance range | No |
| Engine Manufacturer | Perkins |
| Brand | Sparex |
| Mechanical Governor | Yes |
| Hydraulic Timing Device | Yes |
Manufacturer Part Numbers
| CAV |
|---|
| 3240F938 |
| Lucas |
| 3840F938, CAV3240F938 |
| Massey Ferguson |
| 1447156M91, 883517M91, 899071M91 |
