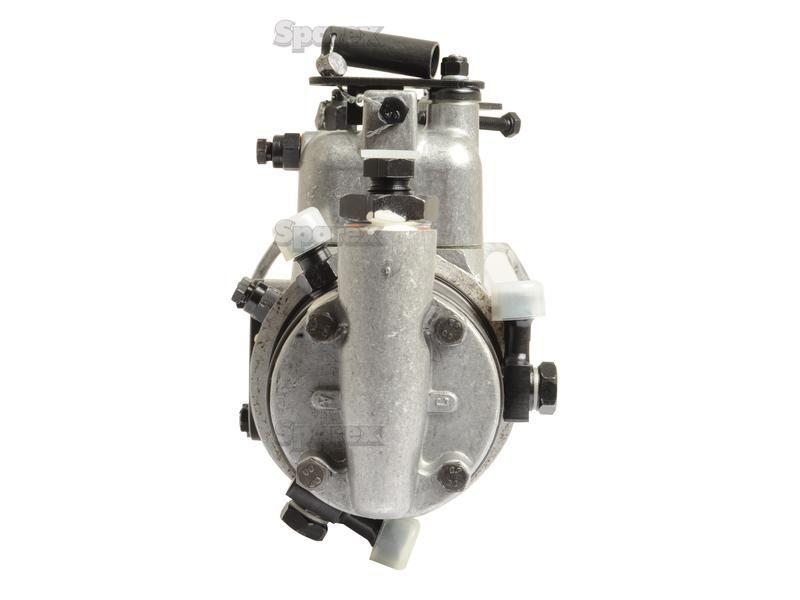

Fuel Injection Pump for Massey Ferguson 240 (200 Series)
Part Number: S.105951Categories: Fuel Injection
Part Number: S.105951
Grade: Replacement
Part Details
Fuel Injection Pump
Technical Information
| Automatic advance range | No |
| Brand | Sparex |
| Fuel lubrificated | For test: Calibration Oil ISO4113 For operate: diesel fuel |
| Hydraulic Timing Device | Yes |
| Maximum Peak Injection Pressure bar | 500 |
| Maximum Plunger Stroke mm | 1.5 |
| Maximum Power per Engine Cylinder kw | 20 |
| Maximum Pump Speed rpm | 2500 |
| Mechanical Governor | Yes |
| Number of Plungers | 2 |
| Number of Pumping Outlets | 3 |
| Plunger Diameter mm | 8.5 |
| Pressure bar | 0.1 |
| Pump rotation | Clockwise |
| Related Products | 105971, 24893, 24894, 24895, 44020, 44021 |
| Tariff Code | 8413308090 |
| Temperature Range | -20°C to 71°C |
Manufacturer Part Numbers
| CAV |
|---|
| 3230F180 |
| Lucas |
| CAV3230F180 |
| Massey Ferguson |
| 1446012M91, 1447205M91 |
