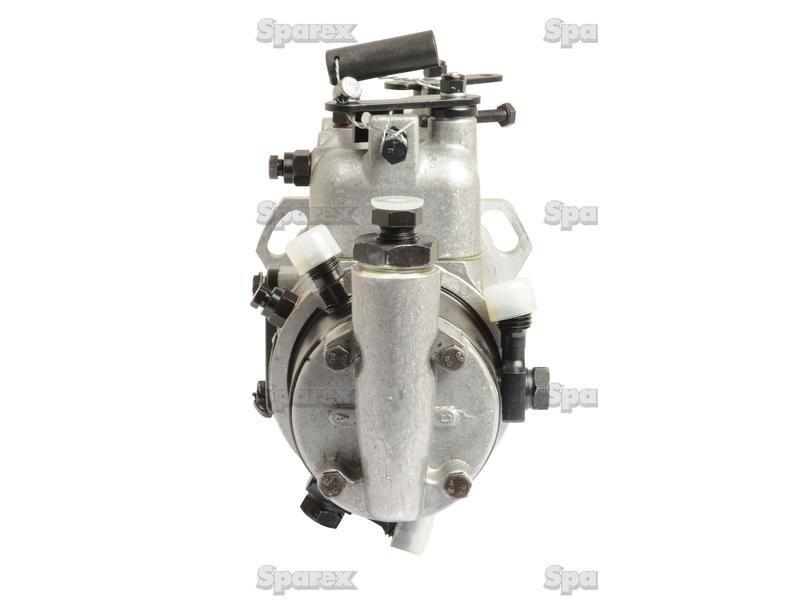

Fuel Injection Pump for Massey Ferguson 35 (Pre 100 Series (1947 - 65))
Part Number: S.105950 - Categories: Fuel Injection
£1150.40
per item, including UK VAT and delivery
Part Number: S.105950
Grade: Replacement
Part Details
Fuel Injection Pump Perkins A3.144, A3.152
Technical Information
| Automatic advance range | No |
| Brand | Sparex |
| Engine Manufacturer | Perkins |
| Engine Model | A3.144, A3.152 |
| Fuel lubrificated | For test: Calibration Oil ISO4113 For operate: diesel fuel |
| Hydraulic Timing Device | No |
| Maximum Peak Injection Pressure bar | 500 |
| Maximum Plunger Stroke mm | 1.5 |
| Maximum Power per Engine Cylinder kw | 20 |
| Maximum Pump Speed rpm | 2500 |
| Mechanical Governor | Yes |
| Number of Plungers | 2 |
| Number of Pumping Outlets | 3 |
| Plunger Diameter mm | 8.5 |
| Pressure bar | 0.1 |
| Pump rotation | Clockwise |
| Related Products | 105971, 24893, 24894, 24895, 44020, 44021 |
| Tariff Code | 8413308090 |
| Temperature Range | -20°C to 70°C |
Manufacturer Part Numbers
| CAV |
|---|
| 3230F030, 36185, 36823, 36827, 36962 |
| Landini |
| 136962, 3639020M1 |
| Lucas |
| CAV3230F030 |
| Massey Ferguson |
| 3639020M1 |
