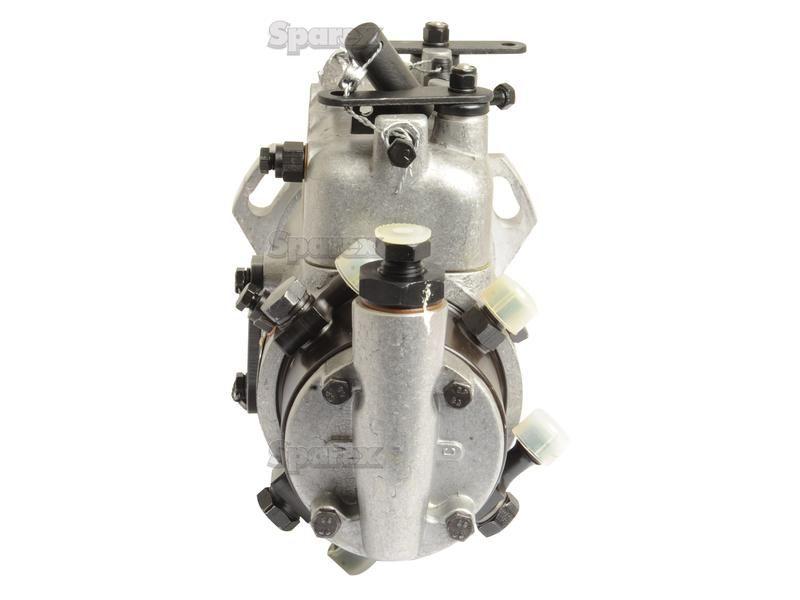

Fuel Injection Pump for Massey Ferguson 188 (100 Series)
Part Number: S.105955Categories: Fuel Injection
Part Number: S.105955
Grade: Replacement
Part Details
Fuel Injection Pump Perkins A4.248
Technical Information
| Automatic advance range | No |
| Brand | Sparex |
| Engine Manufacturer | Perkins |
| Engine Model | A4.248 |
| Fuel lubrificated | For test: Calibration Oil ISO4113 For operate: diesel fuel |
| Hydraulic Timing Device | No |
| Maximum Peak Injection Pressure bar | 500 |
| Maximum Plunger Stroke mm | 1.5 |
| Maximum Power per Engine Cylinder kw | 20 |
| Maximum Pump Speed rpm | 2500 |
| Mechanical Governor | Yes |
| Number of Plungers | 2 |
| Number of Pumping Outlets | 4 |
| Plunger Diameter mm | 9 |
| Pressure bar | 0.1 |
| Pump rotation | Clockwise |
| Related Products | 24893, 24894, 24895, 44019, 44020, 44021 |
| Tariff Code | 8413308090 |
| Temperature Range | -20°C to 75°C |
Manufacturer Part Numbers
| CAV |
|---|
| 3241F100, 3241F101, 3241F102, 3241F103, 3241F104 |
| Lucas |
| CAV3241F102 |
| Massey Ferguson |
| 1446875M91, 37253, 37385, 37398, 37399, 37431, 37877 |
