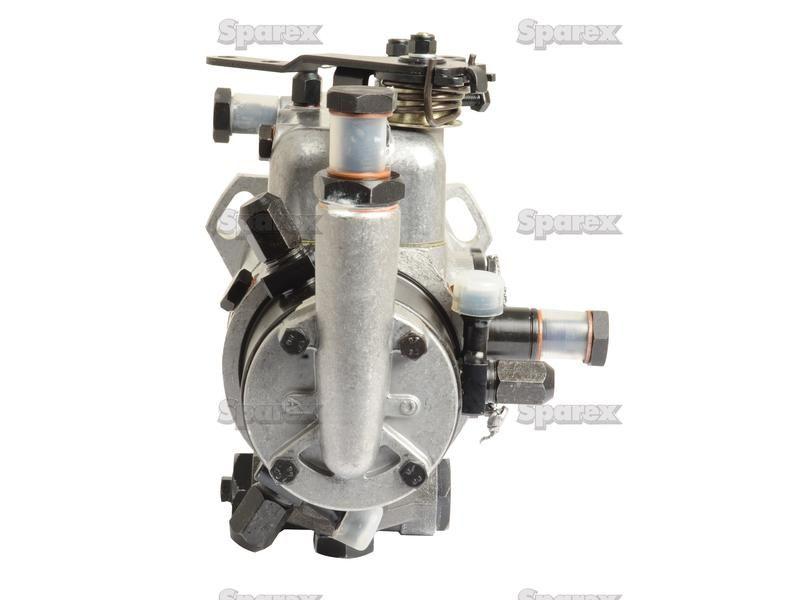

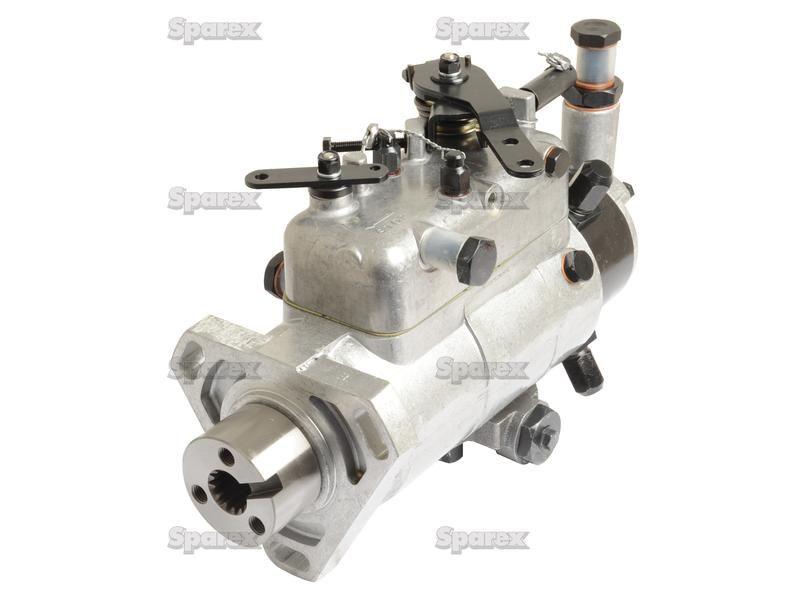

Fuel Injection Pump for Ford New Holland 535 (Industrial)
Part Number: S.105961Categories: Fuel Injection
Part Number: S.105961
Grade: Replacement
Part Details
Fuel Injection Pump Ford Motor BSD326, BSD329
Technical Information
| Automatic advance range | +3° to +10° |
| Temperature range | -20°C to +81°C |
| Pressure (bar) | 0.1 |
| Maximum Plunger Stroke (mm) | 1.5 |
| Related products | 105974,44020,44021 |
| Number of Plungers | 2 |
| Maximum Power per Engine Cylinder (kw) | 20 |
| Maximum Pump Speed rpm | 2500 |
| Number of Pumping Outlets | 3 |
| Maximum Peak Injection Pressure (bar) | 500 |
| Tariff Code | 8413308090 |
| Plunger Diameter (mm) | 9.5 |
| Engine Model | BSD326, BSD329 |
| Pump rotation | Clockwise |
| Fuel lubrificated | For test: Calibration Oil ISO4113 For operate: diesel fuel |
| Engine Manufacturer | Ford Motor |
| Brand | Sparex |
| Mechanical Governor | Yes |
| Hydraulic Timing Device | Yes |
Manufacturer Part Numbers
| CAV |
|---|
| 3233F661, CAV3833F661 |
| Ford New Holland |
| 83947846, 83954934, D6NN9A543F, E2NN9A543TA, E2NN9A543TB |
| Lucas |
| CAV3833F661 |
