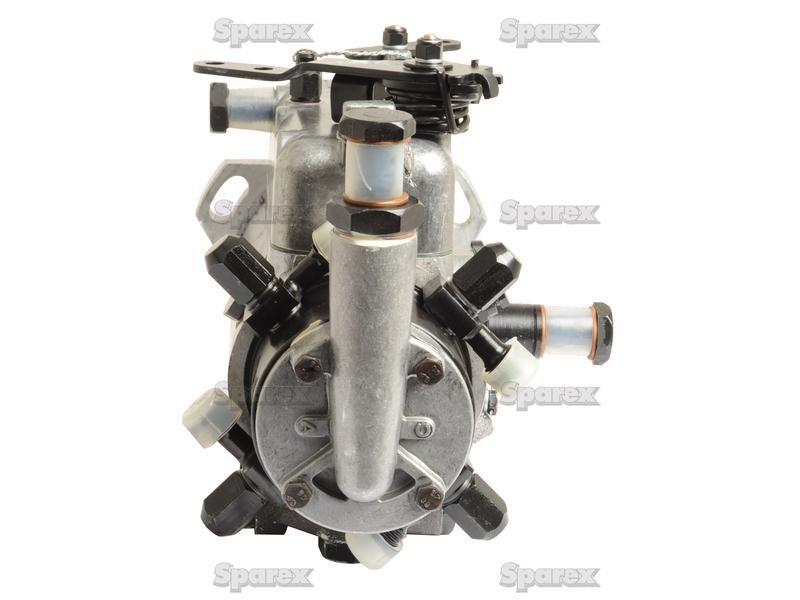

Fuel Injection Pump for Ford New Holland 535 (Industrial)
Part Number: S.105959Categories: Fuel Injection
Part Number: S.105959
Grade: Replacement
Part Details
Fuel Injection Pump Ford Motor BSD442
Technical Information
| Automatic advance range | -1° to +9° |
| Temperature range | -20°C to +79°C |
| Pressure (bar) | 0.1 |
| Maximum Plunger Stroke (mm) | 1.5 |
| Related products | 105975,24893,24894,24895,44020,44021 |
| Number of Plungers | 2 |
| Maximum Power per Engine Cylinder (kw) | 20 |
| Maximum Pump Speed rpm | 2500 |
| Number of Pumping Outlets | 4 |
| Maximum Peak Injection Pressure (bar) | 500 |
| Tariff Code | 8413308090 |
| Plunger Diameter (mm) | 9.5 |
| Engine Model | BSD442 |
| Pump rotation | Clockwise |
| Fuel lubrificated | For test: Calibration Oil ISO4113 For operate: diesel fuel |
| Engine Manufacturer | Ford Motor |
| Brand | Sparex |
| Mechanical Governor | Yes |
| Hydraulic Timing Device | Yes |
Manufacturer Part Numbers
| CAV |
|---|
| 3249F951, CAV3849F951 |
| Ford New Holland |
| 83900051, 87769417, D4NN9A543F |
| Lucas |
| CAV3849F951 |
