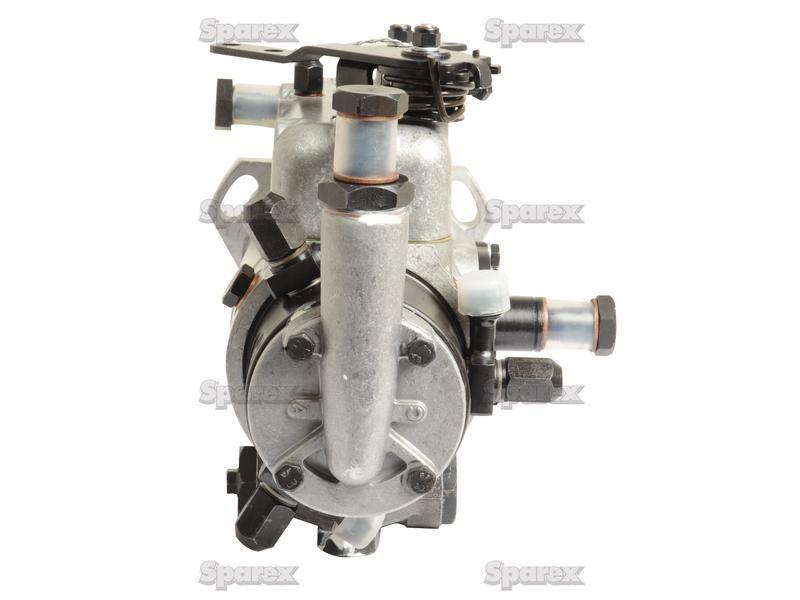

Fuel Injection Pump for Ford New Holland 4600 (100 Series)
Part Number: S.105958Categories: Fuel Injection
Part Number: S.105958
Grade: Replacement
Part Details
Fuel Injection Pump Ford Motor BSD333
Technical Information
| Automatic advance range | 0° to +8° |
| Brand | Sparex |
| Engine Manufacturer | Ford Motor |
| Engine Model | BSD333 |
| Fuel lubrificated | For test: Calibration Oil ISO4113 For operate: diesel fuel |
| Hydraulic Timing Device | Yes |
| Maximum Peak Injection Pressure bar | 500 |
| Maximum Plunger Stroke mm | 1.5 |
| Maximum Power per Engine Cylinder kw | 20 |
| Maximum Pump Speed rpm | 2500 |
| Mechanical Governor | Yes |
| Number of Plungers | 2 |
| Number of Pumping Outlets | 3 |
| Plunger Diameter mm | 8.5 |
| Pressure bar | 0.1 |
| Pump rotation | Clockwise |
| Related Products | 105974, 24893, 24894, 24895, 44020, 44021 |
| Tariff Code | 8413308090 |
| Temperature Range | -20°C to 78°C |
Manufacturer Part Numbers
| CAV |
|---|
| 3233F390, CAV3833F390 |
| Ford New Holland |
| 81823739, 87763986, D0NN9A543K, D6NN9A543GR |
| Lucas |
| CAV3833F390 |
