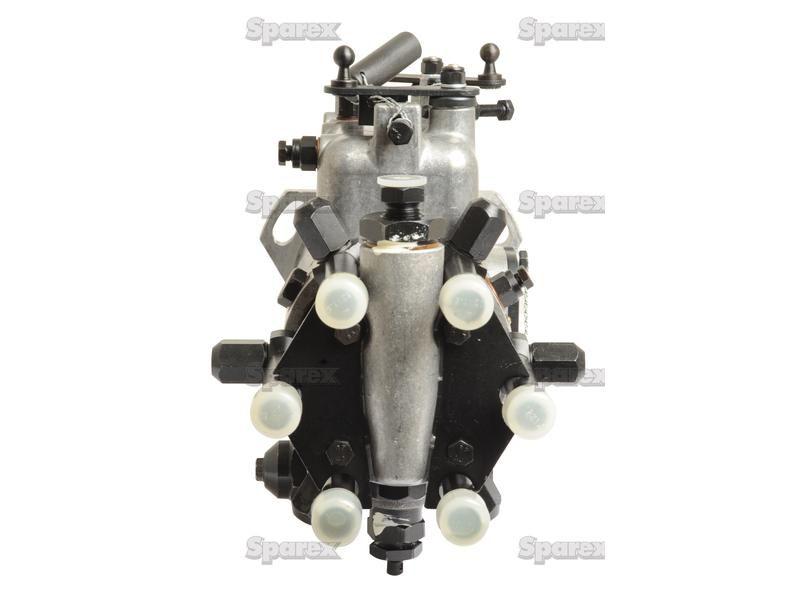

Fuel Injection Pump for Fiat 1380 (Classic Models)
Part Number: S.105965Categories: Fuel Injection
Part Number: S.105965
Grade: Replacement
Part Details
Fuel Injection Pump Fiat Iveco 8065.24
Technical Information
| Automatic advance range | -5.5° -3° -2° |
| Brand | Sparex |
| Engine Manufacturer | Fiat Iveco |
| Engine Model | 8065.24 |
| Fuel lubrificated | For test: Calibration Oil ISO4113 For operate: diesel fuel |
| Hydraulic Timing Device | Yes |
| Maximum Peak Injection Pressure bar | 500 |
| Maximum Plunger Stroke mm | 1.5 |
| Maximum Power per Engine Cylinder kw | 20 |
| Maximum Pump Speed rpm | 2500 |
| Mechanical Governor | Yes |
| Number of Plungers | 2 |
| Number of Pumping Outlets | 6 |
| Plunger Diameter mm | 9 |
| Pressure bar | 0.1 |
| Pump rotation | Clockwise |
| Related Products | 105978, 44020, 44021 |
| Tariff Code | 8413308090 |
| Temperature Range | -20°C to 85°C |
Manufacturer Part Numbers
| Case IH |
|---|
| 4762361 |
| CAV |
| 3362F850 |
| Fiat |
| 2022136, 4762361 |
