£876.77
per item, including UK VAT and delivery
Part Number: S.105962
Grade: Replacement
Part Details

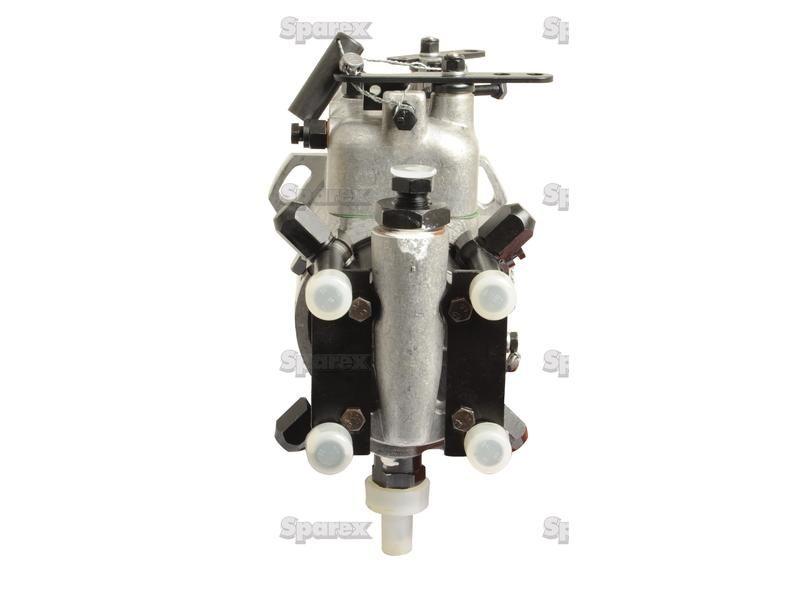

Fuel Injection Pump Fiat Iveco 8045.02, CAV Equivalent
Technical Information
| Automatic advance range | -3° to +3° |
| Brand | Sparex |
| Engine Manufacturer | Fiat Iveco |
| Engine Model | 8045.02, CAV Equivalent |
| Fuel lubrificated | For test: Calibration Oil ISO4113 For operate: diesel fuel |
| Hydraulic Timing Device | Yes |
| Maximum Peak Injection Pressure bar | 500 |
| Maximum Plunger Stroke mm | 1.5 |
| Maximum Power per Engine Cylinder kw | 20 |
| Maximum Pump Speed rpm | 2500 |
| Mechanical Governor | Yes |
| Number of Plungers | 2 |
| Number of Pumping Outlets | 4 |
| Plunger Diameter mm | 9 |
| Pressure bar | 0.1 |
| Pump rotation | Anti-Clockwise |
| Related Products | 105976, 44020, 44021 |
| Tariff Code | 8413308090 |
| Temperature Range | -20°C to 82°C |
Manufacturer Part Numbers
| CAV |
|---|
| 3249F060, 3249F470, 3249F650, CAV3842F060 |
| Fiat |
| 770533, 770537, 9966618 |
| Lucas |
| CAV3842F060 |
