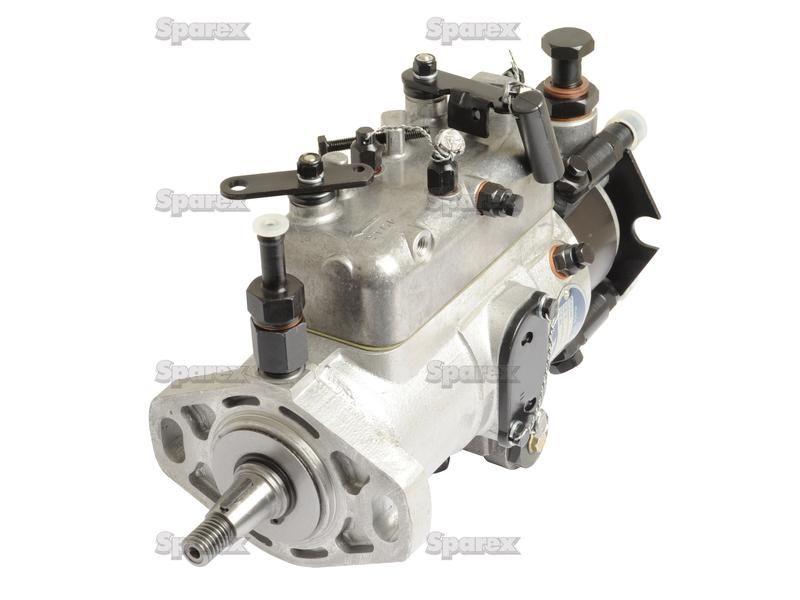

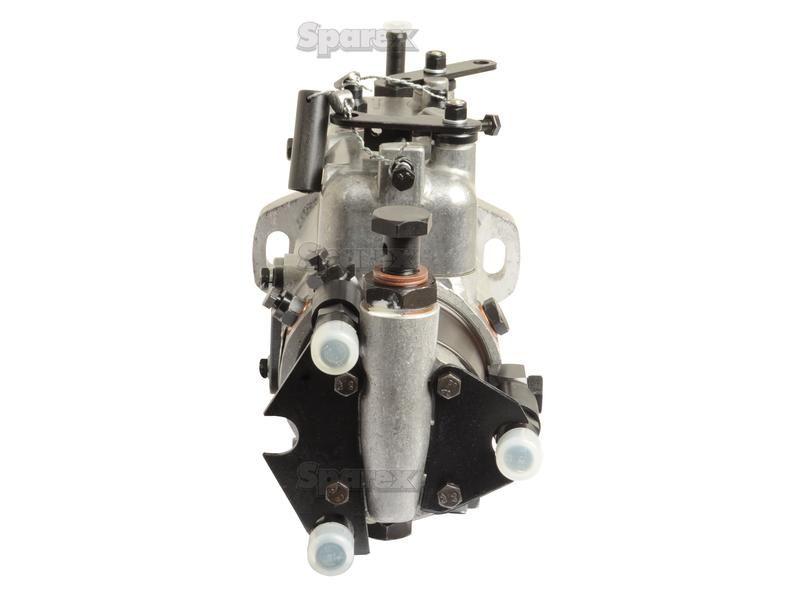

Fuel Injection Pump for Case IH 383 (23 Series)
Part Number: S.105969Categories: Fuel Injection
Part Number: S.105969
Grade: Replacement
Part Details
Fuel Injection Pump Case IH Motor D155, Bosch Equivalent
Technical Information
| Automatic advance range | -1° to +5° |
| Brand | Sparex |
| Engine Manufacturer | Case IH Motor |
| Engine Model | D155, Bosch Equivalent |
| Fuel lubrificated | For test: Calibration Oil ISO4113 For operate: diesel fuel |
| Hydraulic Timing Device | Yes |
| Maximum Peak Injection Pressure bar | 500 |
| Maximum Plunger Stroke mm | 1.5 |
| Maximum Power per Engine Cylinder kw | 20 |
| Maximum Pump Speed rpm | 2500 |
| Mechanical Governor | Yes |
| Number of Plungers | 2 |
| Number of Pumping Outlets | 3 |
| Plunger Diameter mm | 8.5 |
| Pressure bar | 0.1 |
| Pump rotation | Clockwise |
| Related Products | 105971, 44020, 44021 |
| Tariff Code | 8413308090 |
| Temperature Range | -20°C to 89°C |
Manufacturer Part Numbers
| Bosch |
|---|
| 0460303025 |
| Case IH |
| 3055345R92, 3144268R91 |
