Faster Quick Release Hydraulic Coupling Female 1/2'' Body x M22 x 1.50 Metric Male Bulkhead Faster S.p.A (CPV087/2215 F, CPV087/2215F)
Part Number: S.112667Categories: Hydraulics
Part Number: S.112667
Grade: Replacement
Part Details
Faster Quick Release Hydraulic Coupling Female 1/2'' Body x M22 x 1.50 Metric Male Bulkhead
Technical Information

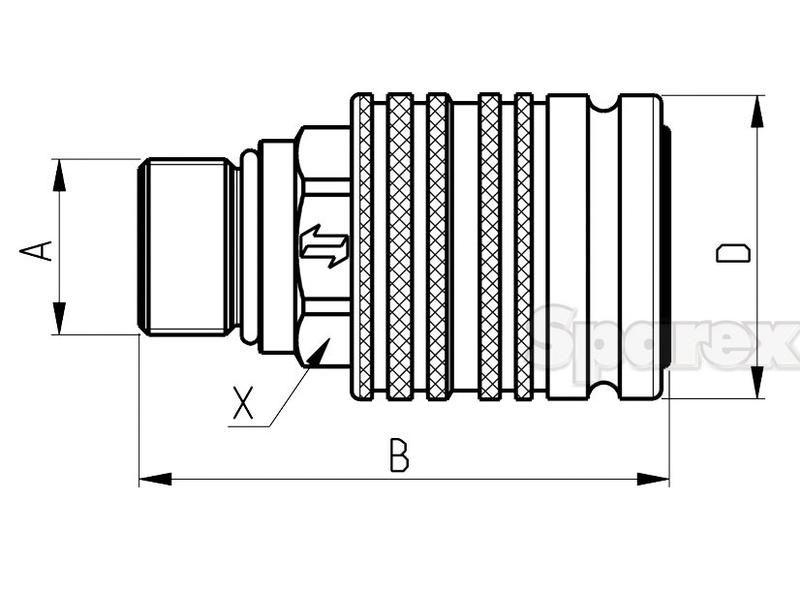

| A mm | M22 x 1.50 |
| B mm | 77.3 |
| Body size ins | 1/2 |
| Brand | Faster |
| Coupler type | Standard Coupling With Poppet Valve |
| D Ø mm | 38 |
| Flow rate litres per minute | 75 |
| ISO Rating | ISO A |
| Length mm | 77.3 |
| Male Female | Female |
| Material | Carbon Steel/ |
| Maximum Working Pressure bar | 250 |
| Outer Ø mm | 38 |
| Reference | CPV087/2215 F |
| Related Products | 112662 |
| Series | BG3 |
| Tariff Code | 8708999790 |
| Thread Male or Female | Male Bulkhead |
| Thread size | M22 x 1.50 |
| Thread type | Metric |
| Tube Series | 15L |
Manufacturer Part Numbers
| Faster S.p.A |
|---|
| CPV087/2215 F, CPV087/2215F |
