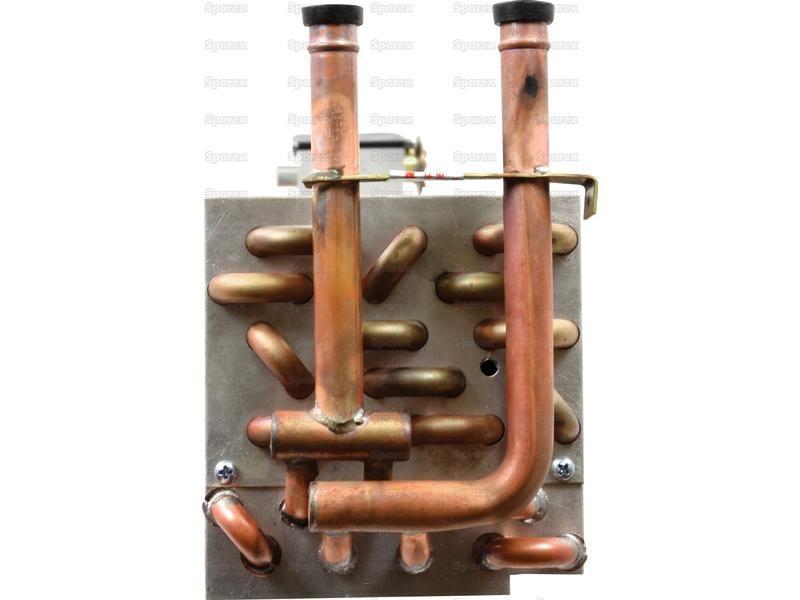

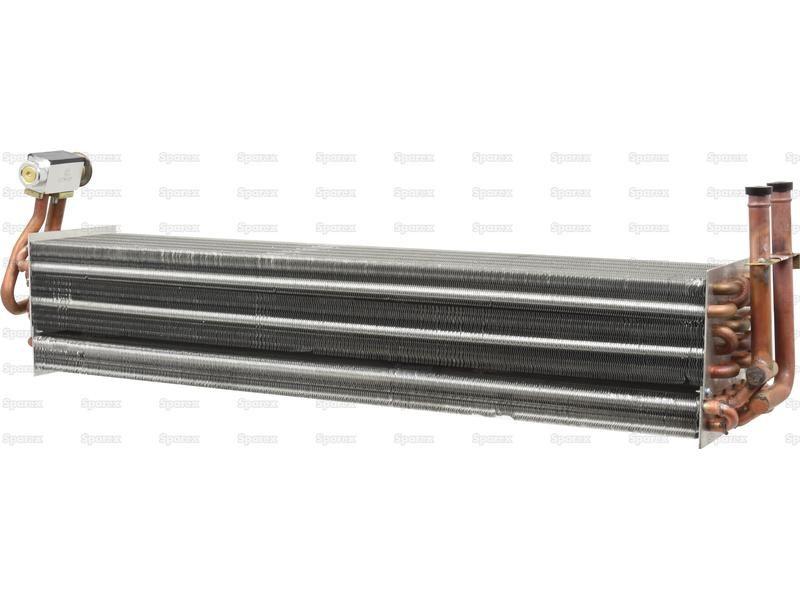

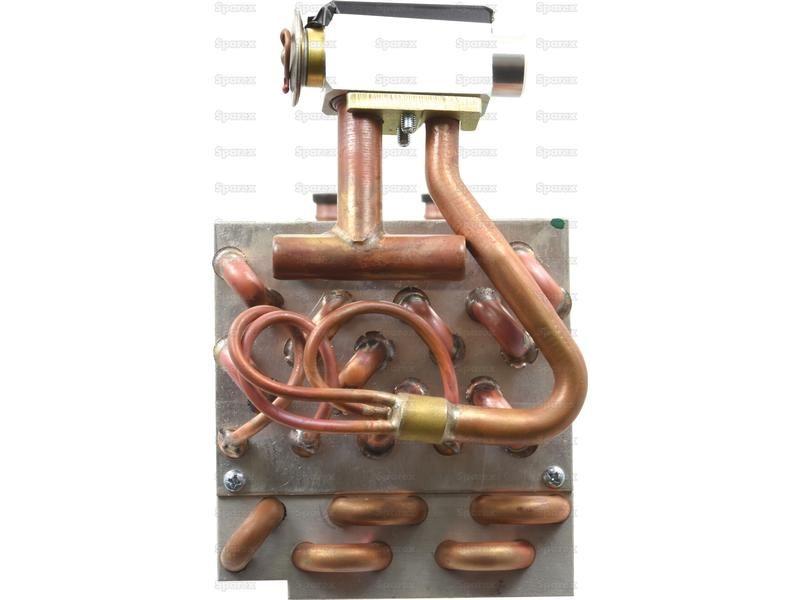

Evaporator for Fiat M135 (M Series)
Part Number: S.106741Categories: Tractor Cabin
Part Number: S.106741
Grade: Replacement
Part Details
Evaporator Fitting inlet: No.8 Male O-Ring, Fitting outlet: No.8 Male O-Ring, Core height: 127mm, Core width: 79mm, Core length: 648mm.
Technical Information
| Brand | Sparex |
| Core height ins | 5 |
| Core height mm | 127 |
| Core length ins | 25 1/2 |
| Core length mm | 648 |
| Core width ins | 3 1/8 |
| Core width mm | 79 |
| Fitting | Male O-Ring |
| Fitting inlet | No.8 Male O-Ring |
| Fitting outlet | No.8 Male O-Ring |
| Overall height ins | 5 1/4 |
| Overall height mm | 133 |
| Overall length ins | 29 1/2 |
| Overall length mm | 749 |
| Overall width ins | 7 1/2 |
| Overall width mm | 191 |
| Related Products | 106699, 106713, 106714, 106719 |
| Tariff Code | 8415900000 |
| Valve type | Block Type |
Manufacturer Part Numbers
| Case IH |
|---|
| 82009238, 82034850, 82034855, 87701044 |
| Ford New Holland |
| 82009238, 82034850, 82034855, 87701044 |
