DISPLACEMENT CYLINDER-20MM
Part Number: S.10884Categories: Fasteners, Towing and Linkages
Part Number: S.10884
Grade: Replacement
Part Details

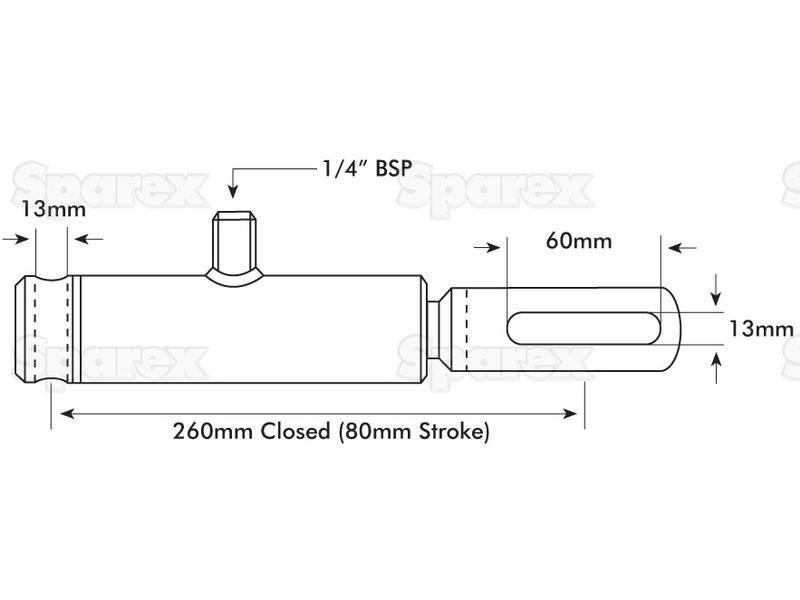

DISPLACEMENT CYLINDER-20MM 20mm Ø Displacement Cylinder with Slotted Jaw. Suitable for the most popular sizes of cylinders. Can be used on all but the very largest of axles. Gives approximately 1/2 ton thrust per cylinder at maximum recommended working pressure.
Technical Information
| Brand | Sparex |
| Closed Centre Length mm | 239 |
| Cylinder OD mm | 38.1 |
| Cylinder Stroke mm | 76 |
| Maximum Working Pressure bar | 150 |
| Notes | Internal Return Spring |
| Open Centre Length mm | 315 |
| Rod Ø mm | 20 |
| Tariff Code | 8716909000 |
| Thread size | 1/4'' |
| Thread type | Male |
