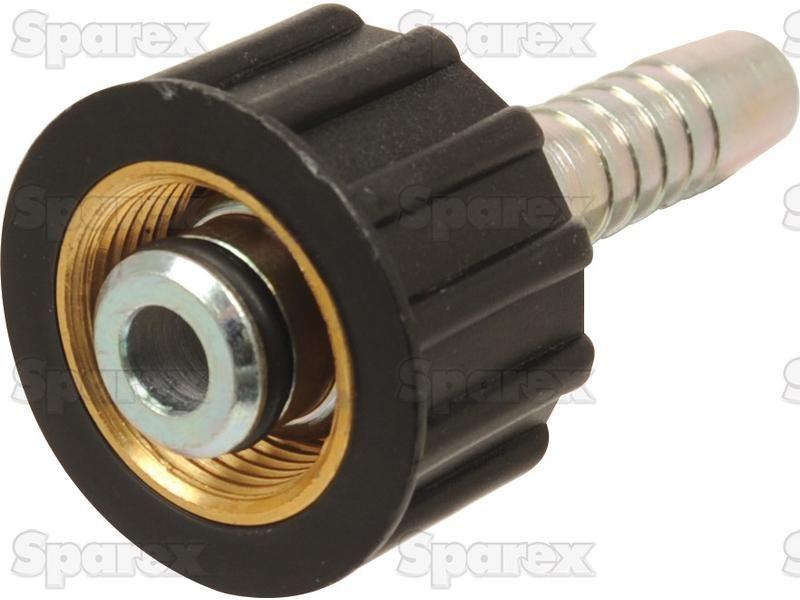

Dicsa Metric (Karcher) Hose Insert 3/8'' x M22 x 1.5 Female Thread Straight Swivel Cone Overlay
Part Number: S.56416Categories: Hydraulics
Part Number: S.56416
Grade: Replacement
Part Details
Dicsa Metric (Karcher) Hose Insert 3/8'' x M22 x 1.5 Female Thread Straight Swivel Cone Overlay

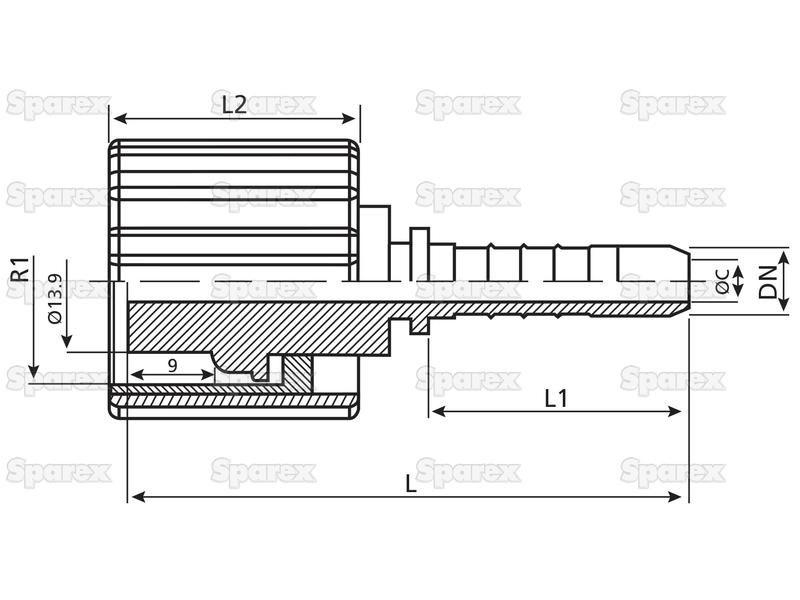

Technical Information
| Brand | Dicsa |
| C Ø mm | 7 |
| DN Ø ins | 3/8 |
| DN Ø mm | 9.5 |
| Fitting | 2 Piece Fitting |
| Hose inner Ø ins | 3/8 |
| Hose inner Ø mm | 9.5 |
| L mm | 62.5 |
| L1 mm | 29.5 |
| L2 mm | 20 |
| Nominal I.D. | DN10 |
| Position | Straight Swivel Cone Overlay |
| Reference | 230700600 |
| Related Products | 112566, 116652 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Female Thread |
| Thread size R1 | M22 x 1.5 |
| Thread type | Metric (Karcher) |
