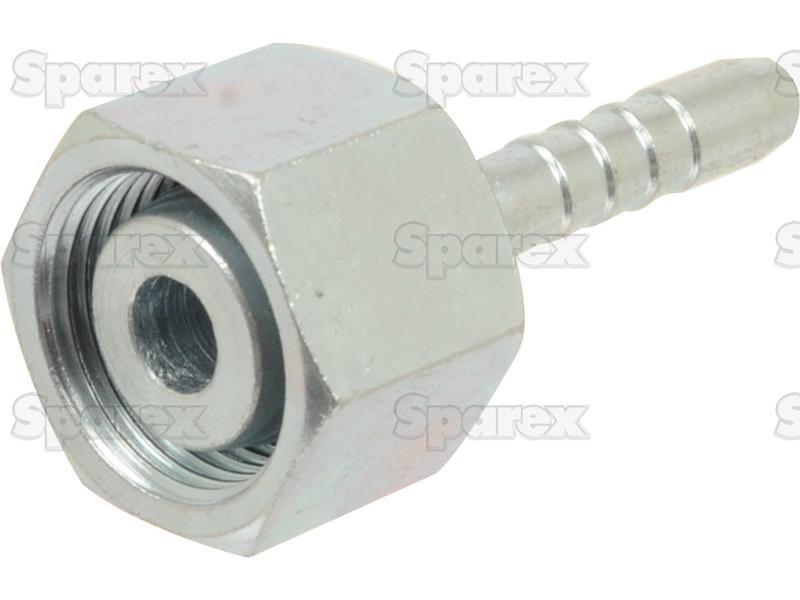

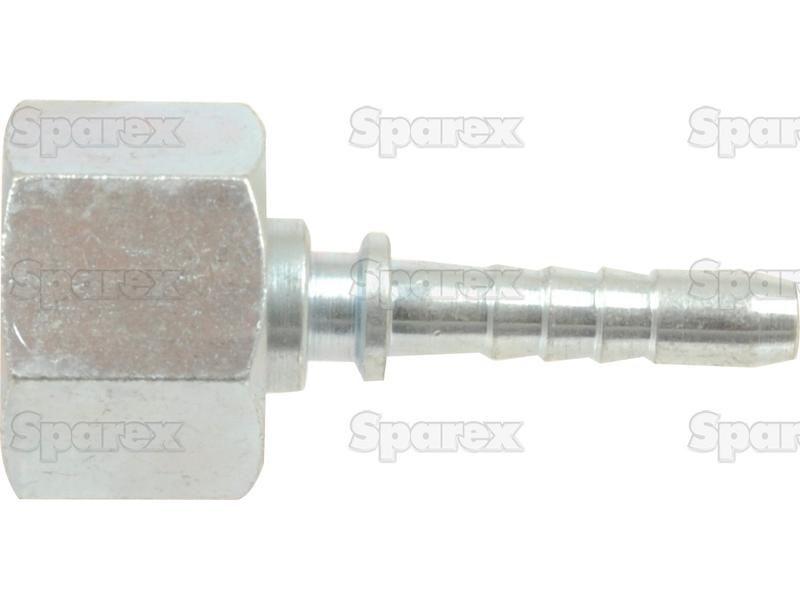

Dicsa Metric (French Gas) 24° Hose Insert 3/4'' x M36 x 1.5 Female Thread Straight Swivel
Part Number: S.116902Categories: Hydraulics
Part Number: S.116902
Grade: Replacement
Part Details
Dicsa Metric (French Gas) 24° Hose Insert 3/4'' x M36 x 1.5 Female Thread Straight Swivel

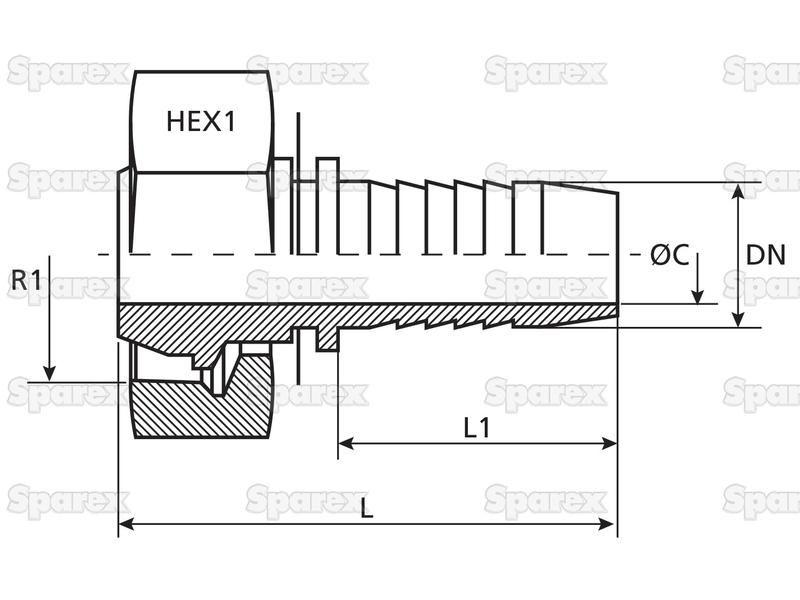

Technical Information
| Brand | Dicsa |
| C Ø mm | 15 |
| Cone angle | 24° |
| DN Ø ins | 3/4 |
| DN Ø mm | 19.05 |
| Fitting | 2 Piece Fitting |
| Hex1 mm | 41 |
| Hose inner Ø ins | 3/4 |
| Hose inner Ø mm | 19.05 |
| L mm | 81.5 |
| L1 mm | 39 |
| Nominal I.D. | DN20 |
| Position | Straight Swivel |
| Reference | 245043626712 |
| Related Products | 112569, 116655 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Female Thread |
| Thread size R1 | M36 x 1.5 |
| Thread type | Metric (French Gas) |
