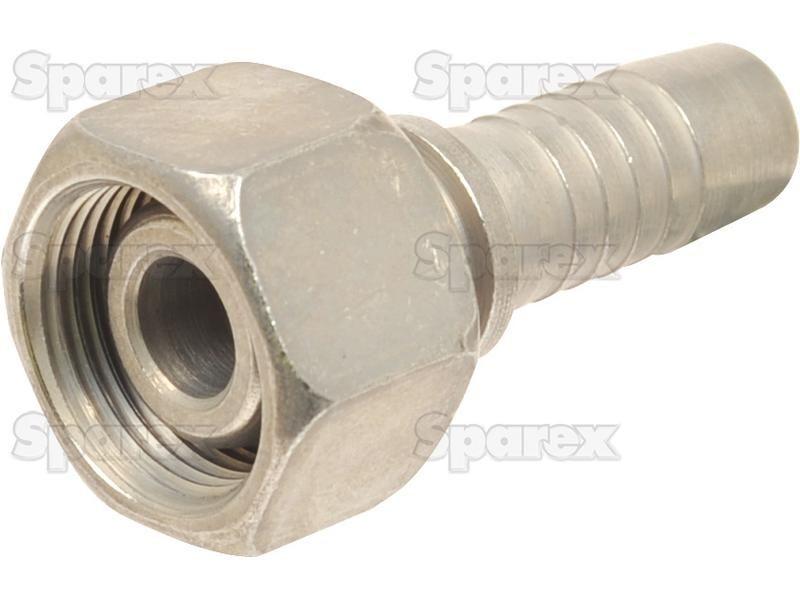

Dicsa Metric 24°/60° Hose Insert 1/4'' x M16 x 1.5 (10L) Female Thread Straight Swivel
Part Number: S.116871Categories: Hydraulics
Part Number: S.116871
Grade: Replacement
Part Details
Dicsa Metric 24°/60° Hose Insert 1/4'' x M16 x 1.5 (10L) Female Thread Straight Swivel

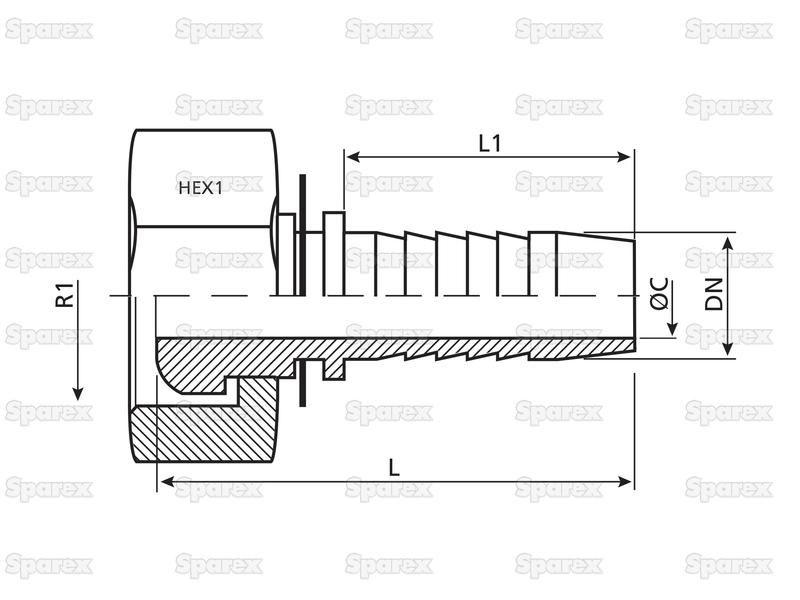

Technical Information
| Brand | Dicsa |
| C Ø mm | 4 |
| Cone angle | 24°/60° |
| DN Ø ins | 1/4 |
| DN Ø mm | 6.3 |
| Fitting | 2 Piece Fitting |
| Hex1 mm | 19 |
| Hose inner Ø ins | 1/4 |
| Hose inner Ø mm | 6.3 |
| L mm | 46.5 |
| L1 mm | 28 |
| Nominal I.D. | DN06 |
| Position | Straight Swivel |
| Reference | 244049520 |
| Related Products | 112564, 116651 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Female Thread |
| Thread size R1 | M16 x 1.5 |
| Thread type | Metric |
| Tube Ø mm | 10 |
| Tube Series | 10L |
