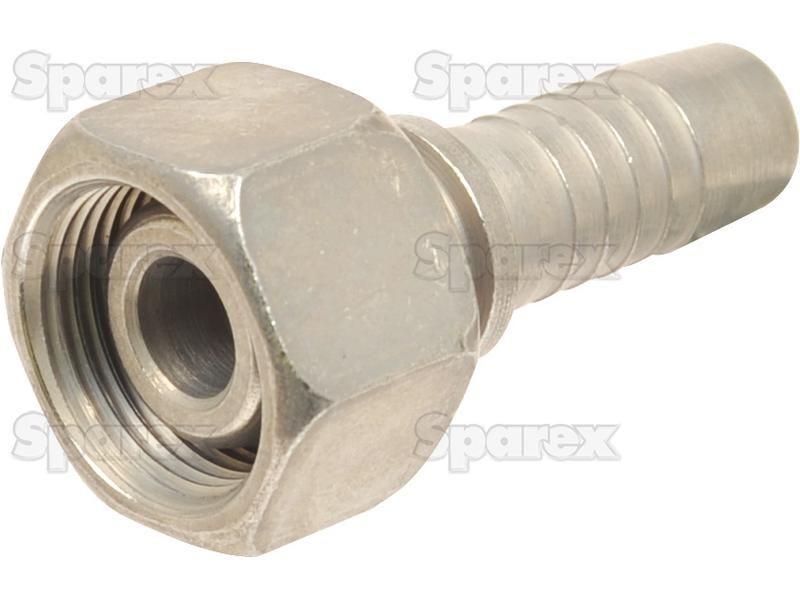

Dicsa Metric 24°/60° Hose Insert 1/2'' x M22 x 1.5 (15L) Female Thread Straight Swivel
Part Number: S.116877Categories: Hydraulics
Part Number: S.116877
Grade: Replacement
Part Details
Dicsa Metric 24°/60° Hose Insert 1/2'' x M22 x 1.5 (15L) Female Thread Straight Swivel

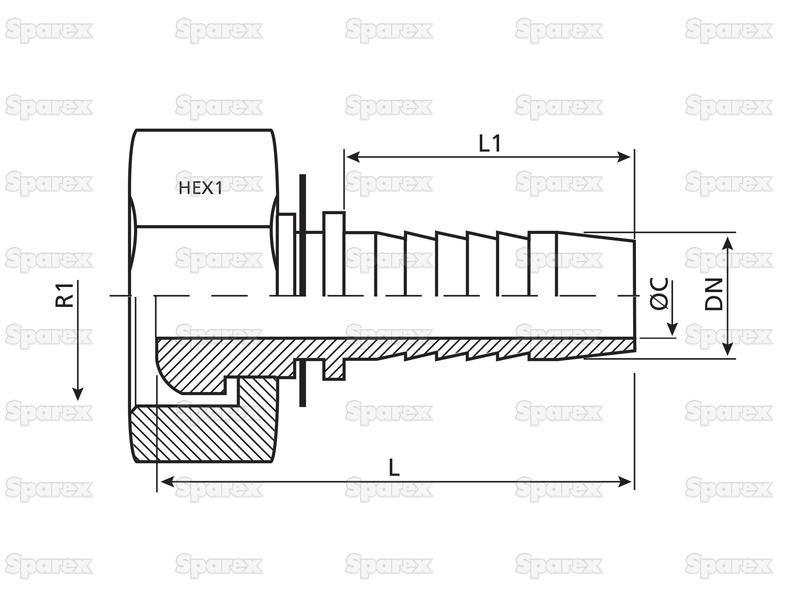

Technical Information
| Brand | Dicsa |
| C Ø mm | 9.5 |
| Cone angle | 24°/60° |
| DN Ø ins | 1/2 |
| DN Ø mm | 12.7 |
| Fitting | 2 Piece Fitting |
| Hex1 mm | 27 |
| Hose inner Ø ins | 1/2 |
| Hose inner Ø mm | 12.7 |
| L mm | 51.5 |
| L1 mm | 29.5 |
| Nominal I.D. | DN12 |
| Position | Straight Swivel |
| Reference | 244049555 |
| Related Products | 112567, 116653 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Female Thread |
| Thread size R1 | M22 x 1.5 |
| Thread type | Metric |
| Tube Ø mm | 15 |
| Tube Series | 15L |
