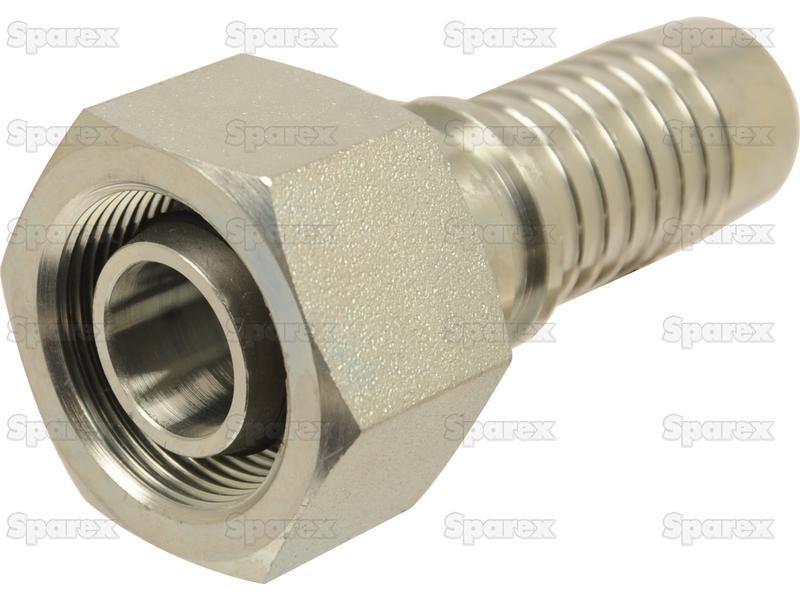

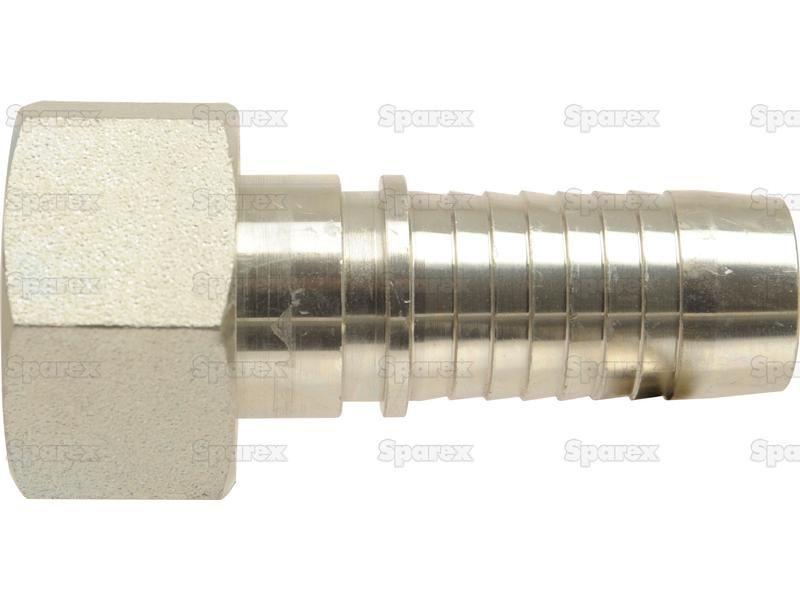

Dicsa Metric 24° Hose Insert 5/8'' x M30 x 2 (20S) Female Thread Straight Swivel With O-Ring
Part Number: S.116748Categories: Hydraulics
Part Number: S.116748
Grade: Replacement
Part Details
Dicsa Metric 24° Hose Insert 5/8'' x M30 x 2 (20S) Female Thread Straight Swivel With O-Ring

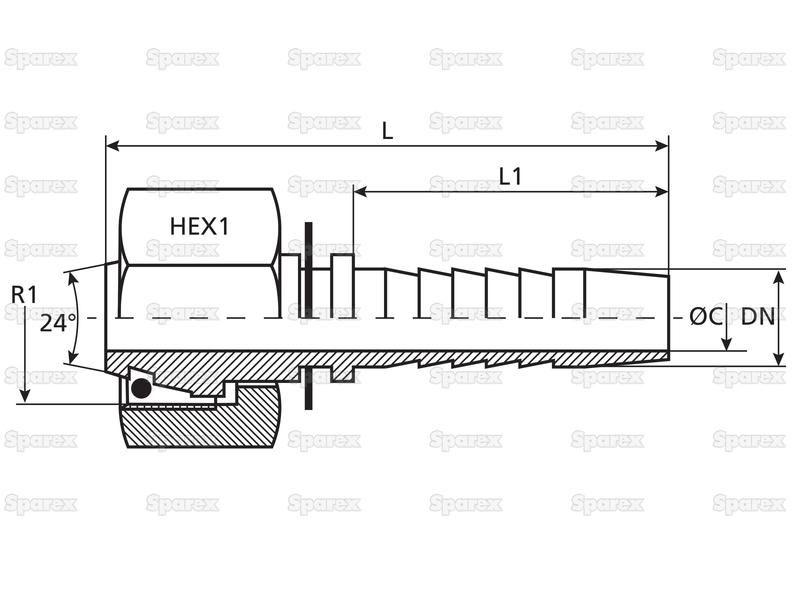

Technical Information
| Brand | Dicsa |
| C Ø mm | 12 |
| Cone angle | 24° |
| DN Ø ins | 5/8 |
| DN Ø mm | 15.9 |
| Fitting | 2 Piece Fitting |
| Hex1 mm | 36 |
| Hose inner Ø ins | 5/8 |
| Hose inner Ø mm | 15.9 |
| L mm | 70.8 |
| L1 mm | 34 |
| Nominal I.D. | DN16 |
| Position | Straight Swivel With O-Ring |
| Reference | 24804302010 |
| Related Products | 112568, 116654 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Female Thread |
| Thread size R1 | M30 x 2 |
| Thread type | Metric |
| Tube Ø mm | 20 |
| Tube Series | 20S |
