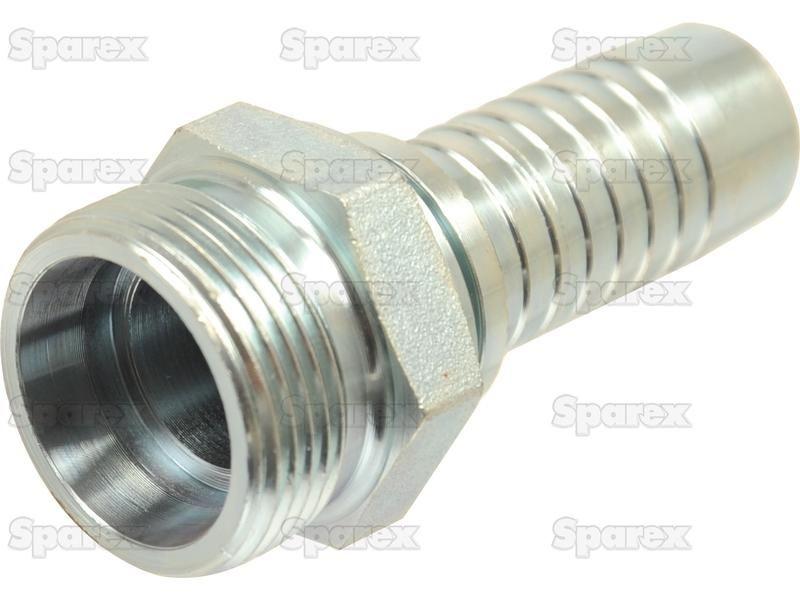

Dicsa Metric 24° Hose Insert 3/8'' x M22 x 1.5 (15L) Male Thread Straight
Part Number: S.116787Categories: Hydraulics
Part Number: S.116787
Grade: Replacement
Part Details
Dicsa Metric 24° Hose Insert 3/8'' x M22 x 1.5 (15L) Male Thread Straight

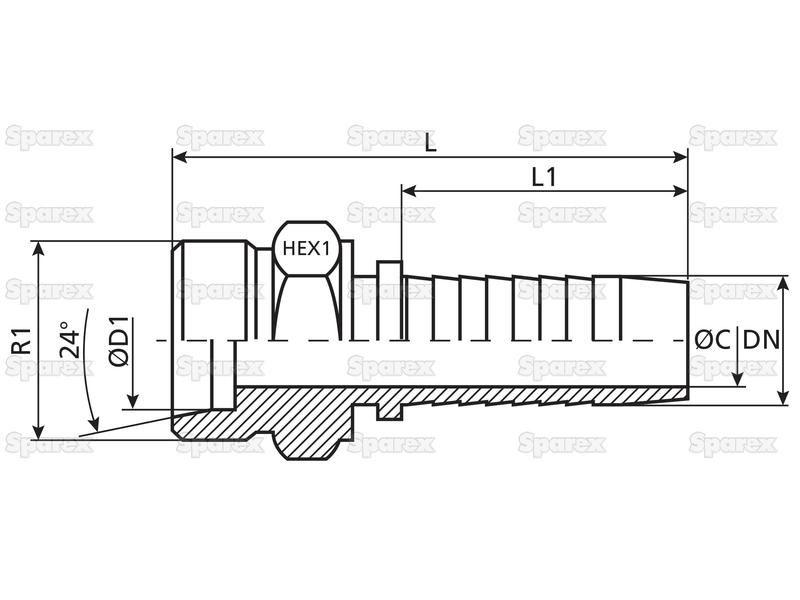

Technical Information
| Brand | Dicsa |
| C Ø mm | 7 |
| Cone angle | 24° |
| DN Ø ins | 3/8 |
| DN Ø mm | 9.5 |
| Fitting | 2 Piece Fitting |
| Hex1 mm | 24 |
| Hose inner Ø ins | 3/8 |
| Hose inner Ø mm | 9.5 |
| L mm | 54 |
| L1 mm | 29.5 |
| Nominal I.D. | DN10 |
| Position | Straight |
| Reference | 24203221506 |
| Related Products | 112566, 116652 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Male Thread |
| Thread size R1 | M22 x 1.5 |
| Thread type | Metric |
| Tube Ø mm | 15 |
| Tube Series | 15L |
