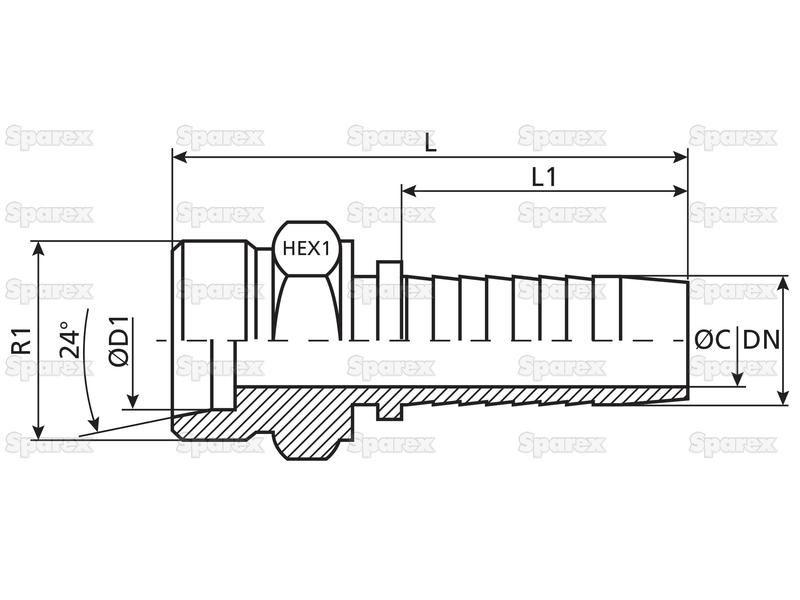

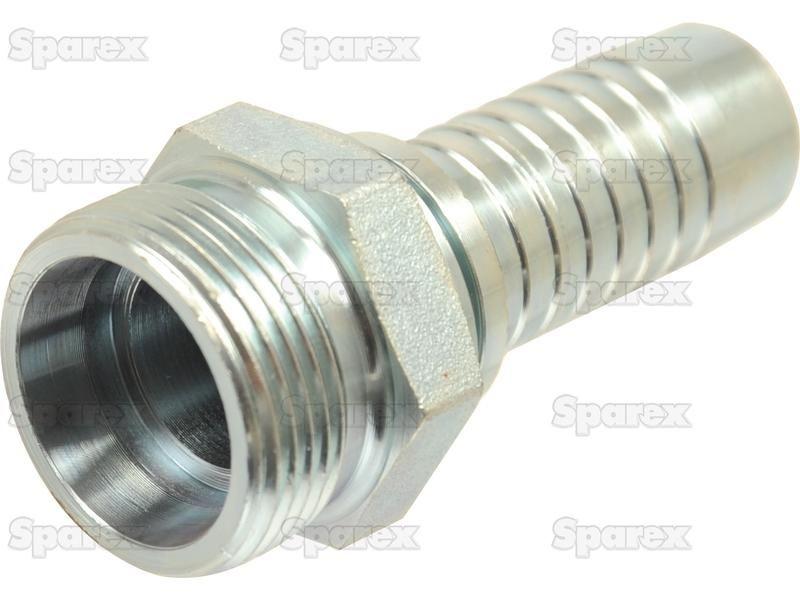

Dicsa Metric 24° Hose Insert 3/4'' x M36 x 2 (25S) Male Thread Straight
Part Number: S.116795Categories: Hydraulics
Part Number: S.116795
Grade: Replacement
Part Details
Dicsa Metric 24° Hose Insert 3/4'' x M36 x 2 (25S) Male Thread Straight
Technical Information
| Brand | Dicsa |
| C Ø mm | 15 |
| Cone angle | 24° |
| DN Ø ins | 3/4 |
| DN Ø mm | 19.05 |
| Fitting | 2 Piece Fitting |
| Hex1 mm | 41 |
| Hose inner Ø ins | 3/4 |
| Hose inner Ø mm | 19.05 |
| L mm | 79.5 |
| L1 mm | 39 |
| Nominal I.D. | DN20 |
| Position | Straight |
| Reference | 24203362512 |
| Related Products | 112569, 116655 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Male Thread |
| Thread size R1 | M36 x 2 |
| Thread type | Metric |
| Tube Ø mm | 25 |
| Tube Series | 25S |
