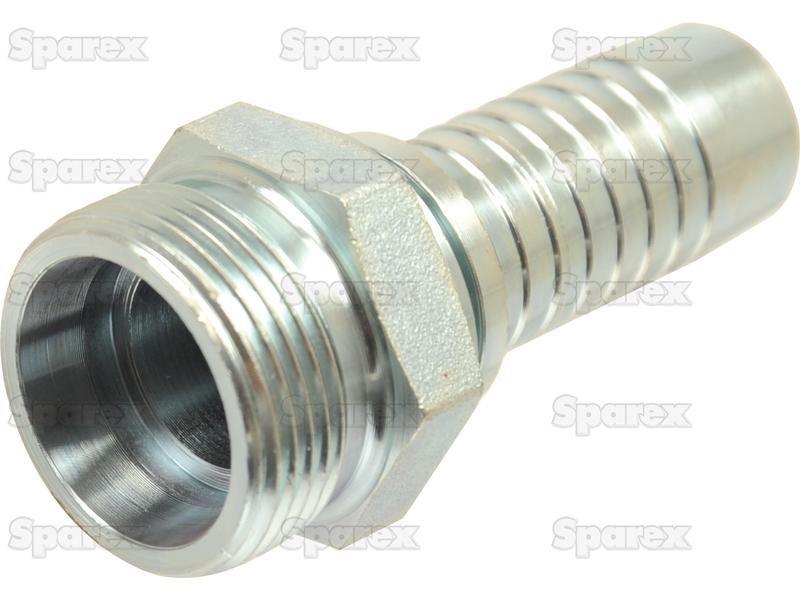

Dicsa Metric 24° Hose Insert 1/4'' x M16 x 1.5 (8S) Male Thread Straight
Part Number: S.116789Categories: Hydraulics
Part Number: S.116789
Grade: Replacement
Part Details
Dicsa Metric 24° Hose Insert 1/4'' x M16 x 1.5 (8S) Male Thread Straight

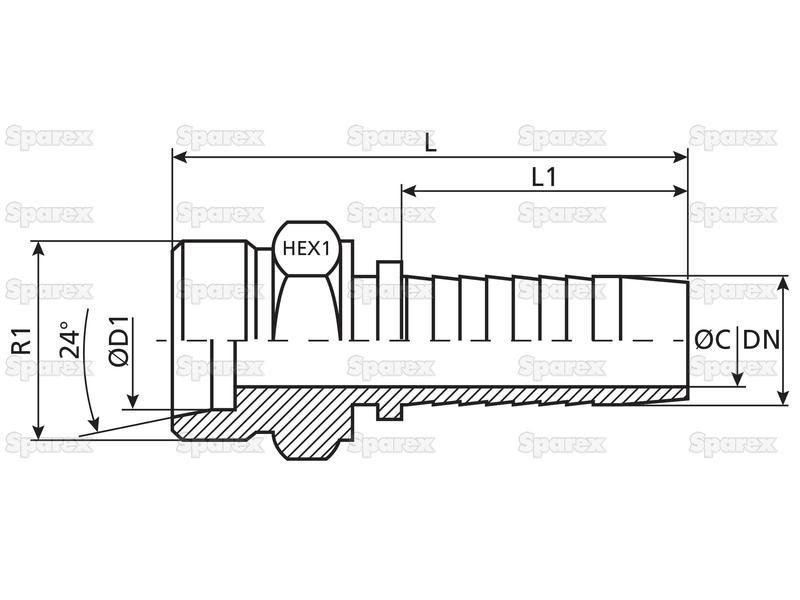

Technical Information
| Brand | Dicsa |
| C Ø mm | 4 |
| Cone angle | 24° |
| DN Ø ins | 1/4 |
| DN Ø mm | 6.3 |
| Fitting | 2 Piece Fitting |
| Hex1 mm | 17 |
| Hose inner Ø ins | 1/4 |
| Hose inner Ø mm | 6.3 |
| L mm | 54 |
| L1 mm | 28 |
| Nominal I.D. | DN06 |
| Position | Straight |
| Reference | 24203160804 |
| Related Products | 112564, 116651 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Male Thread |
| Thread size R1 | M16 x 1.5 |
| Thread type | Metric |
| Tube Ø mm | 8 |
| Tube Series | 8S |
