Dicsa Metric 24° Hose Insert 1/2'' x M20 x 1.5 (12S) Female Thread Straight Swivel With O-Ring
Part Number: S.116747Categories: Hydraulics
Part Number: S.116747
Grade: Replacement
Part Details
Dicsa Metric 24° Hose Insert 1/2'' x M20 x 1.5 (12S) Female Thread Straight Swivel With O-Ring

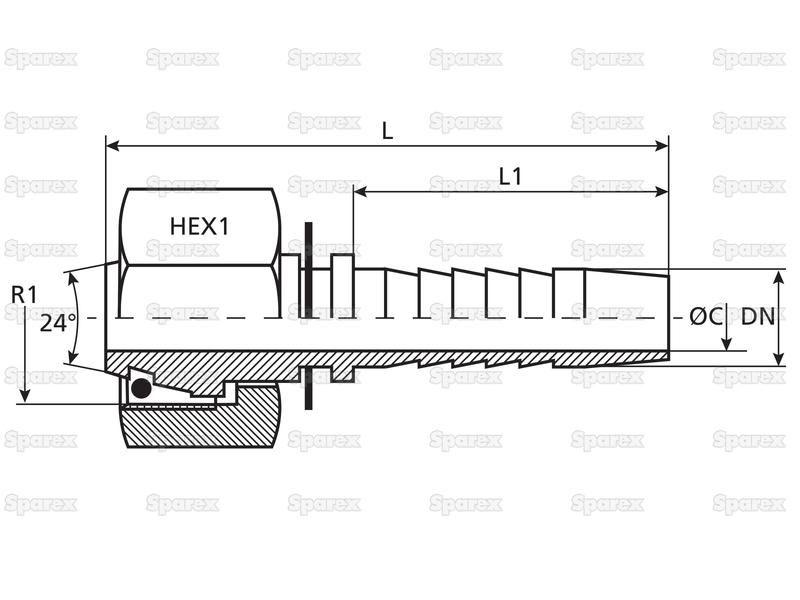

Technical Information
| Brand | Dicsa |
| C Ø mm | 9.5 |
| Cone angle | 24° |
| DN Ø ins | 1/2 |
| DN Ø mm | 12.7 |
| Fitting | 2 Piece Fitting |
| Hex1 mm | 24 |
| Hose inner Ø ins | 1/2 |
| Hose inner Ø mm | 12.7 |
| L mm | 56 |
| L1 mm | 30.5 |
| Nominal I.D. | DN12 |
| Position | Straight Swivel With O-Ring |
| Reference | 24804201208 |
| Related Products | 112567, 116653 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Female Thread |
| Thread size R1 | M20 x 1.5 |
| Thread type | Metric |
| Tube Ø mm | 12 |
| Tube Series | 12S |
