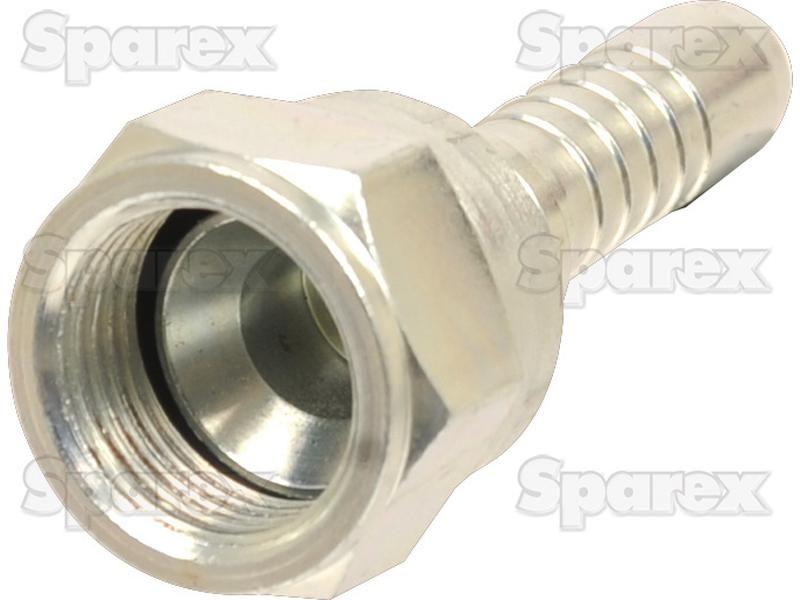

Dicsa JIC 37° Hose Insert 3/8'' x 5/8'' Female Thread Straight Swivel
Part Number: S.116724Categories: Hydraulics
Part Number: S.116724
Grade: Replacement
Part Details
Dicsa JIC 37° Hose Insert 3/8'' x 5/8'' Female Thread Straight Swivel

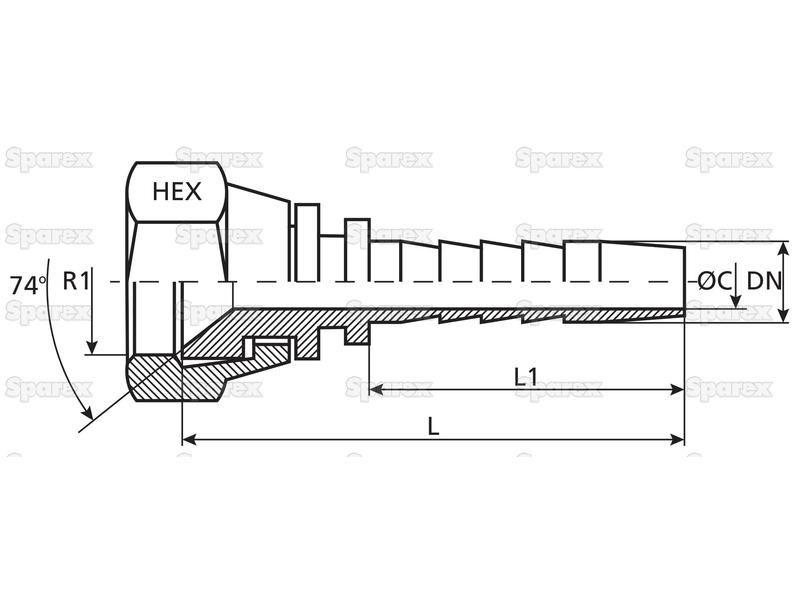

Technical Information
| Brand | Dicsa |
| C Ø mm | 7 |
| Cone angle | 37° |
| DN Ø ins | 3/8 |
| DN Ø mm | 9.5 |
| Fitting | 2 Piece Fitting |
| Hex1 mm | 22 |
| Hose inner Ø ins | 3/8 |
| Hose inner Ø mm | 9.5 |
| L mm | 48 |
| L1 mm | 34.5 |
| Nominal I.D. | DN10 |
| Position | Straight Swivel |
| Reference | 241421006 |
| Related Products | 112566, 116652 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Female Thread |
| Thread size R1 | 5/8 |
| Thread type | JIC |
