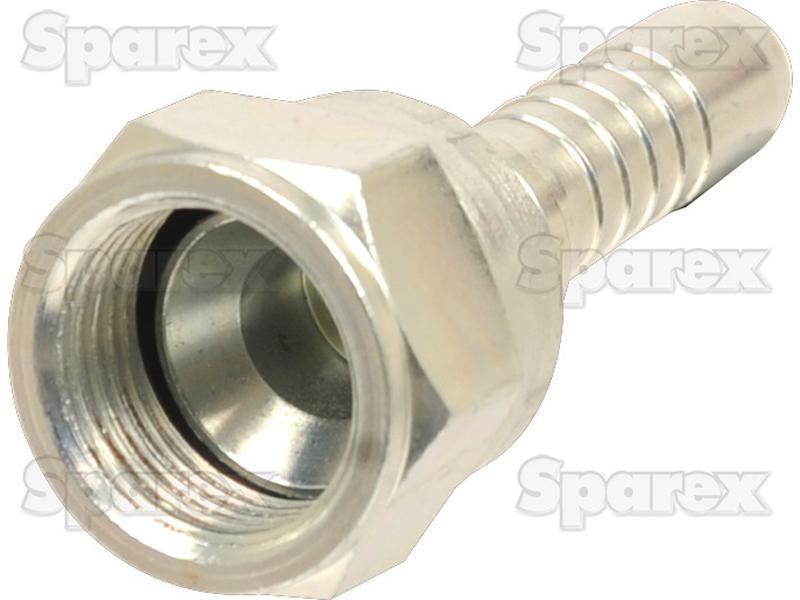

Dicsa JIC 37° Hose Insert 1'' x 1 1/16'' Female Thread Straight Swivel
Part Number: S.116725Categories: Hydraulics
Part Number: S.116725
Grade: Replacement
Part Details
Dicsa JIC 37° Hose Insert 1'' x 1 1/16'' Female Thread Straight Swivel

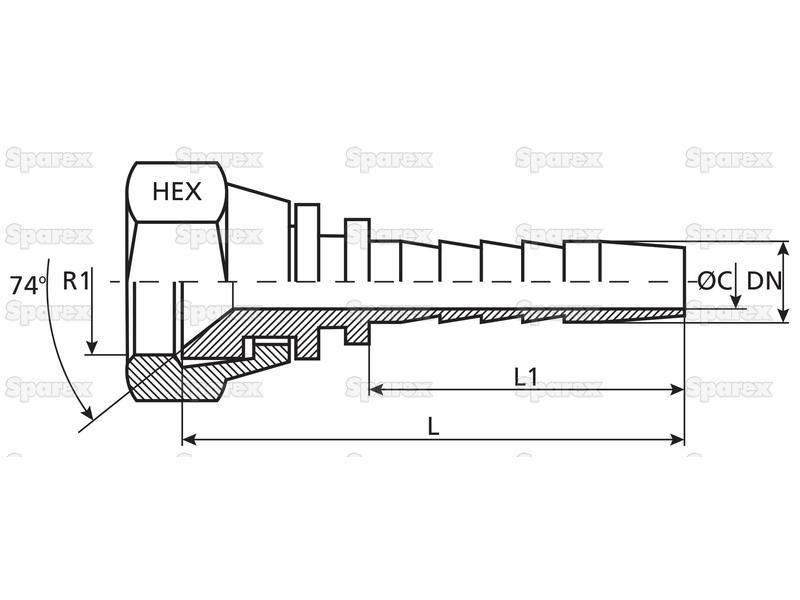

Technical Information
| Brand | Dicsa |
| C Ø mm | 19 |
| Cone angle | 37° |
| DN Ø ins | 1 |
| DN Ø mm | 25.4 |
| Fitting | 2 Piece Fitting |
| Hex1 mm | 32 |
| Hose inner Ø ins | 1 |
| Hose inner Ø mm | 25.4 |
| L mm | 70 |
| L1 mm | 47 |
| Nominal I.D. | DN25 |
| Position | Straight Swivel |
| Reference | 241421716 |
| Related Products | 112570, 116656 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Female Thread |
| Thread size R1 | 1 1/16 |
| Thread type | JIC |
