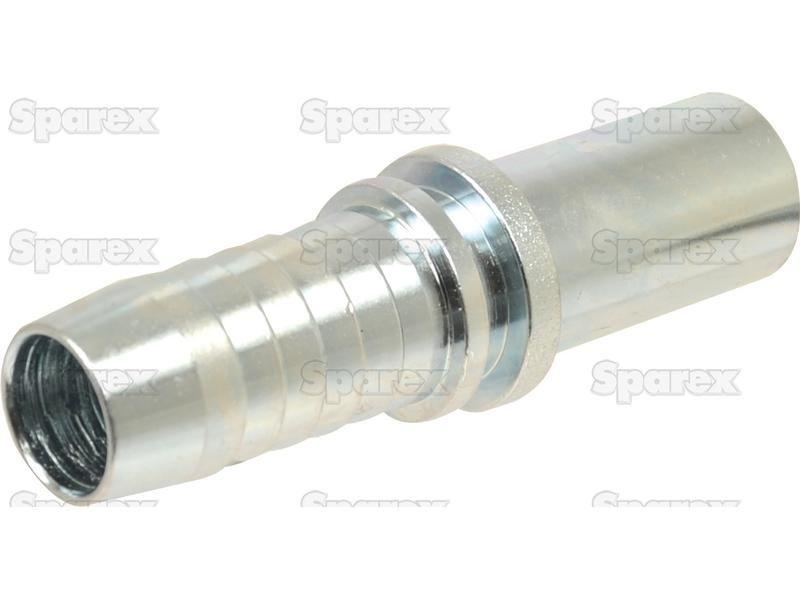

Dicsa Hose Insert 3/8'' x M15 Ø (15L) Straight Standpipe
Part Number: S.116804Categories: Hydraulics
Part Number: S.116804
Grade: Replacement
Part Details
Dicsa Hose Insert 3/8'' x M15 Ø (15L) Straight Standpipe

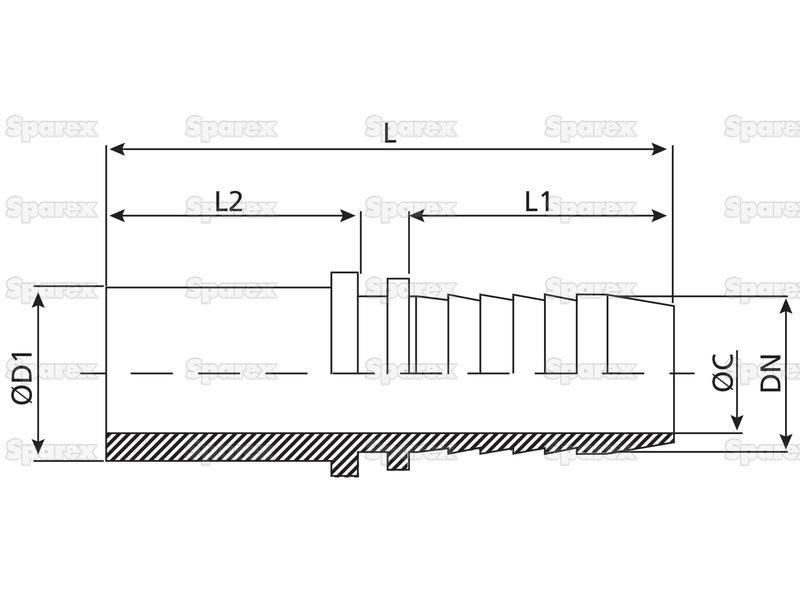

Technical Information
| ØD1 mm | 15 |
| Brand | Dicsa |
| C Ø mm | 7 |
| DN Ø ins | 3/8 |
| DN Ø mm | 9.5 |
| Fitting | 2 Piece Fitting |
| Hose inner Ø ins | 3/8 |
| Hose inner Ø mm | 9.5 |
| L mm | 62 |
| L1 mm | 29.5 |
| L2 mm | 27.5 |
| Nominal I.D. | DN10 |
| Position | Straight Standpipe |
| Reference | 241581506 L |
| Related Products | 112566, 116652, 116825, 116841 |
| Tariff Code | 7307199000 |
| Tube Ø mm | 15 |
| Tube Series | 15L |
