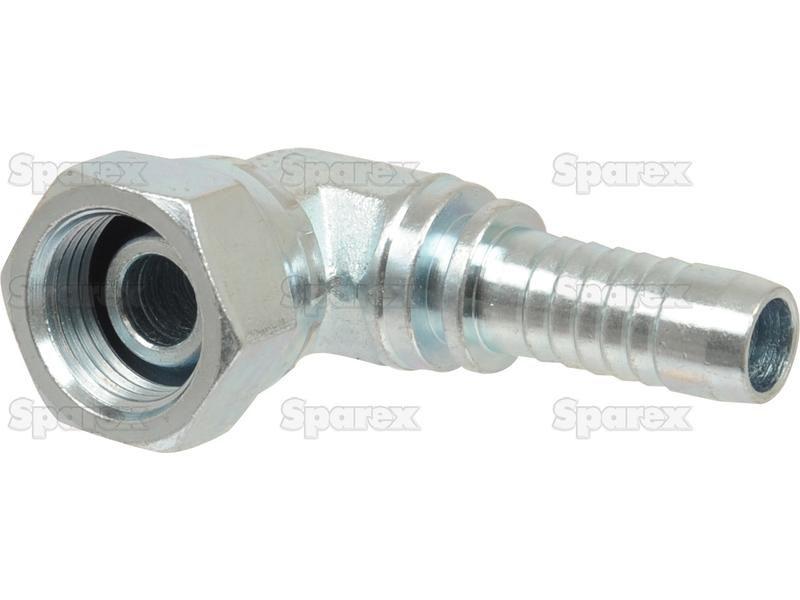

Dicsa BSP 60° Hose Insert 3/8'' x 3/8'' Female Thread 90° Compact Swivel
Part Number: S.56117Categories: Hydraulics
Part Number: S.56117
Grade: Replacement
Part Details
Dicsa BSP 60° Hose Insert 3/8'' x 3/8'' Female Thread 90° Compact Swivel

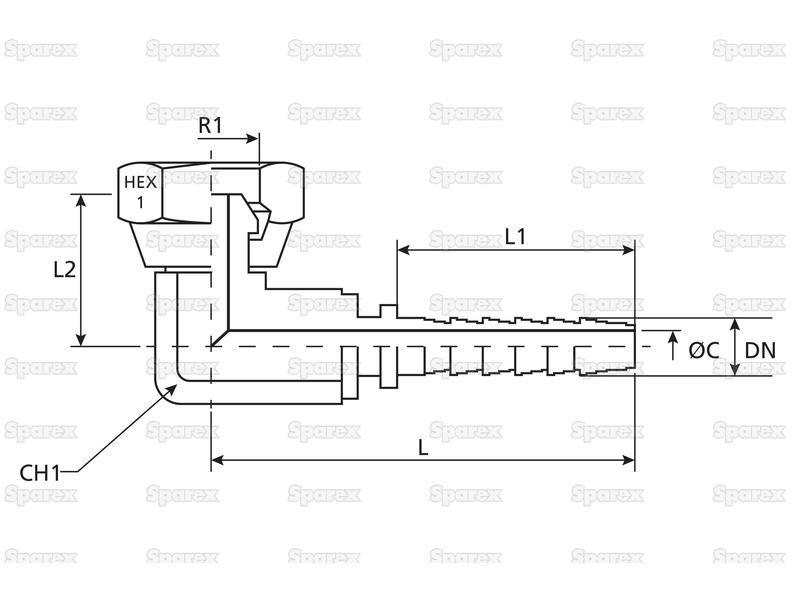

Technical Information
| Brand | Dicsa |
| C Ø mm | 7 |
| CH1 mm | 19 |
| Cone angle | 60° |
| DN Ø ins | 3/8 |
| DN Ø mm | 9.5 |
| Fitting | 2 Piece Fitting |
| Hex1 mm | 22 |
| Hose inner Ø ins | 3/8 |
| Hose inner Ø mm | 9.5 |
| L mm | 54 |
| L1 mm | 29.5 |
| L2 mm | 26 |
| Nominal I.D. | DN10 |
| Position | 90° Compact Swivel |
| Reference | 241270606 |
| Related Products | 112566, 53037, 53053, 53064, 53075, 116652 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Female Thread |
| Thread size R1 | 3/8 |
| Thread type | BSP |
