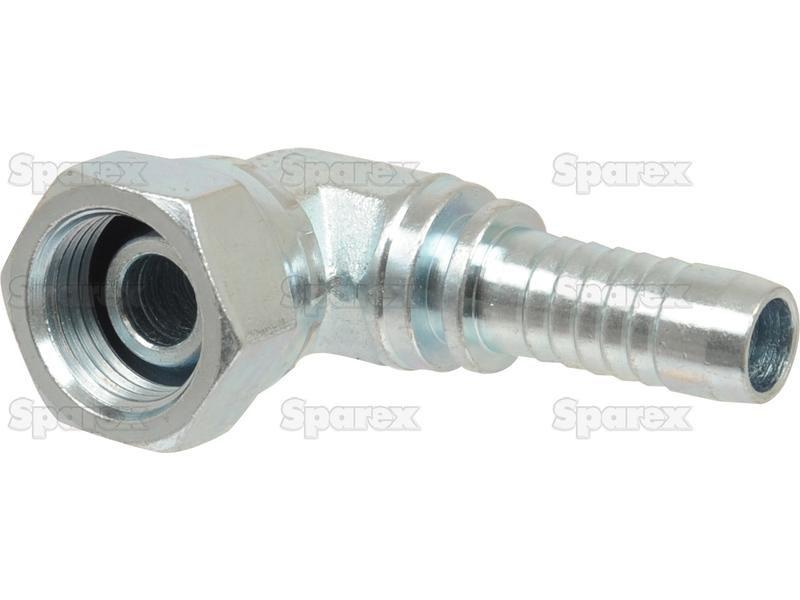

Dicsa BSP 60° Hose Insert 1/4'' x 1/4'' Female Thread 90° Compact Swivel
Part Number: S.56116Categories: Hydraulics
Part Number: S.56116
Grade: Replacement
Part Details
Dicsa BSP 60° Hose Insert 1/4'' x 1/4'' Female Thread 90° Compact Swivel

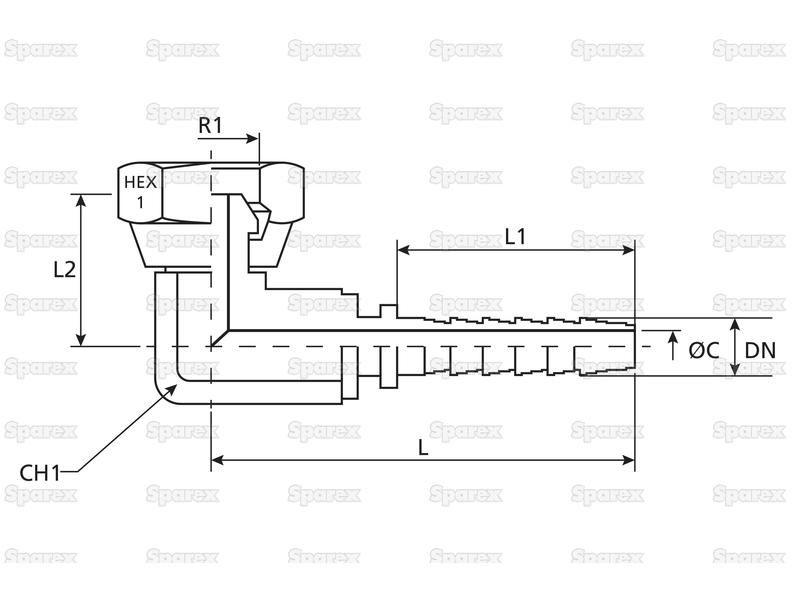

Technical Information
| Brand | Dicsa |
| C Ø mm | 4 |
| CH1 mm | 14 |
| Cone angle | 60° |
| DN Ø ins | 1/4 |
| DN Ø mm | 6.3 |
| Fitting | 2 Piece Fitting |
| Hex1 mm | 19 |
| Hose inner Ø ins | 1/4 |
| Hose inner Ø mm | 6.3 |
| L mm | 50 |
| L1 mm | 28 |
| L2 mm | 25.5 |
| Nominal I.D. | DN06 |
| Position | 90° Compact Swivel |
| Reference | 241270404 |
| Related Products | 112564, 53034, 53050, 53062, 53073, 116651 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Female Thread |
| Thread size R1 | 1/4 |
| Thread type | BSP |
