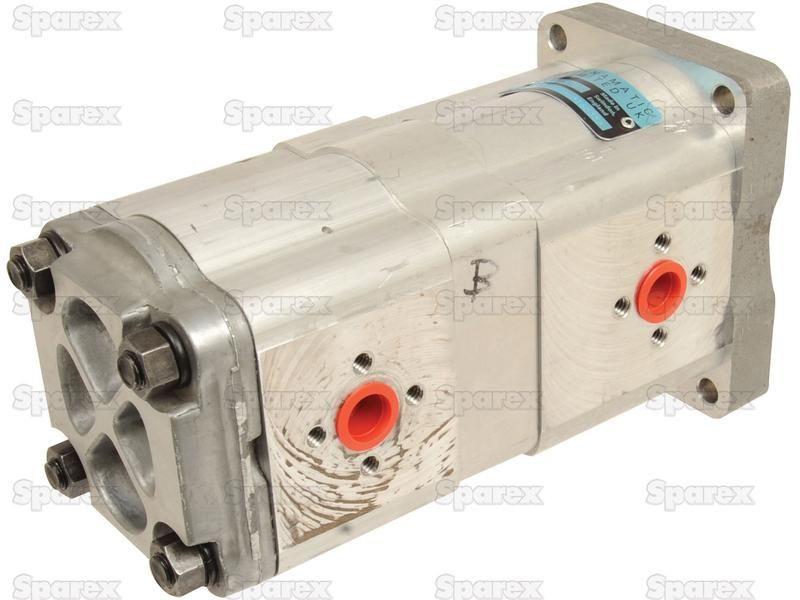

David Brown 1200, 1400, 90 & 94 Series Hydraulic Tandem Pump | K916535, K954263
Part Number: S.60744Categories: Hydraulics
Part Number: S.60744
Grade: Replacement
Part Details
David Brown 1200, 1400, 90 & 94 Series Hydraulic Tandem Pump | K916535, K954263
Technical Information
| Brand | DYNAMATIC TECHNOLOGIES |

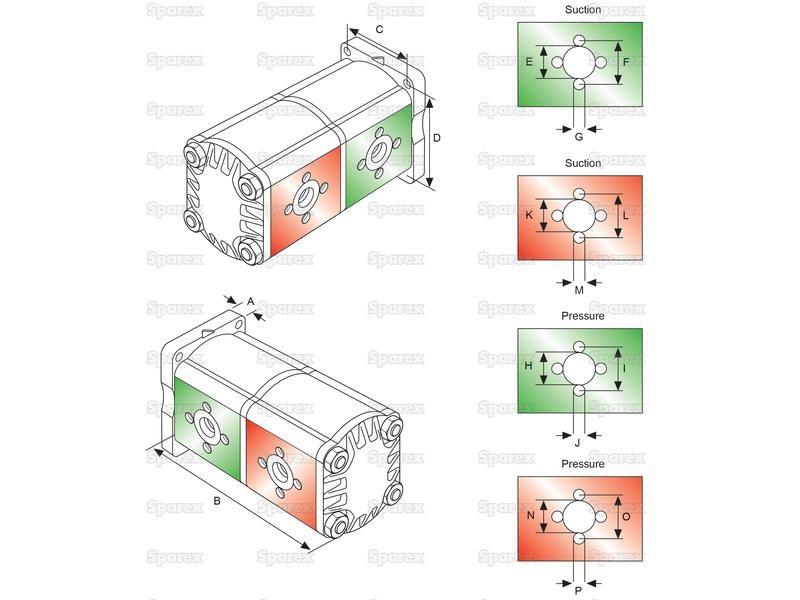

| Diagram specifications | A: 19, - B (mm): 203, - C: 72, - D: 95, - E: 19, - F: 39, - G: M8, - H: 14, - I: 30, - J: M6, - K: , - L: , - M: , - N: 14, - O: 30, - P: M6. |
| Front inlet hole fixing hole size | M8 |
| Front inlet hole fixing hole spacing | 39 |
| Front inlet hole size | 19 |
| Front outlet hole fixing hole size | M6 |
| Front outlet hole fixing hole spacing | 30 |
| Front outlet hole size | 14 |
| Inner max. gallon per minute | 7.58 |
| Inner maximium litres per minute | 28.7 |
| Length mm | 203 |
| Lip measurement | 19 |

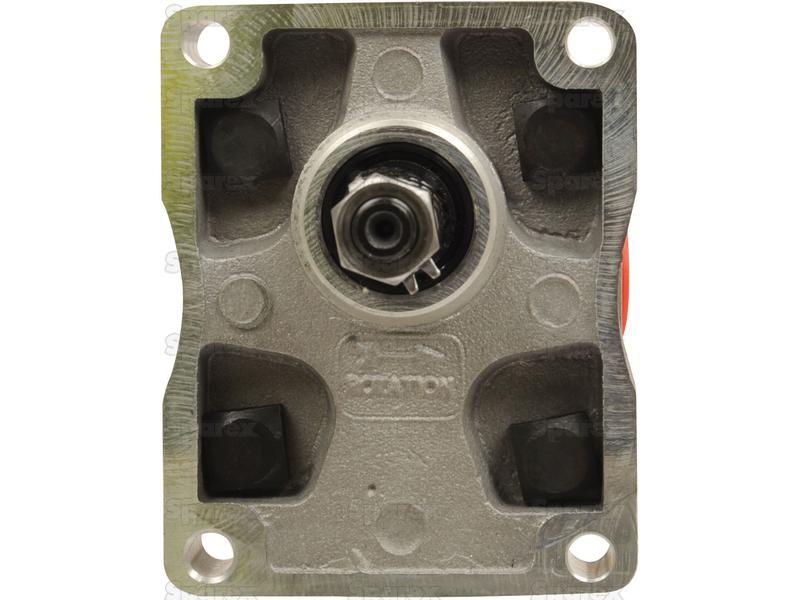

| Pump rotation | Clockwise |
| Pump type | Tandem Pump |
| Rear Outlet Hole Fixing Hole Size | M6 |
| Rear Outlet Hole Fixing Hole Spacing | 30 |
| Rear Outlet Hole Size | 14 |
| Side hole spacing | 95 |
| Tariff Code | 8413603190 |
| Top hole spacing | 72 |
Manufacturer Part Numbers
| Case IH |
|---|
| K200176, K916535, K954263, K956447 |
| David Brown |
| K916535, K954263 |
