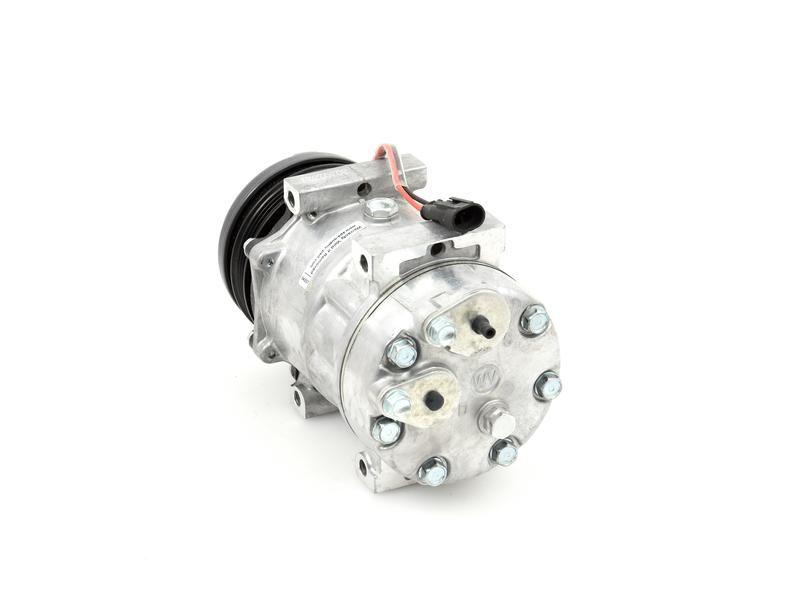

Compressor (SD7H15) for Case IH MXU115 (MXU Series)
Part Number: S.106724Categories: Tractor Cabin
Part Number: S.106724
Grade: Replacement
Part Details
Compressor (SD7H15) Belt pulley width: Serpentinemm, Clutch Ø4.4'', Clutch Ø112mm, Gauge Line: 39.55mm, Grooves: 4, Head Type: WV, Oil Quantity: 135 ml, Oil Type: PAG 100 Airco-Lube, Volts: 12V.
Technical Information
| Belt pulley width mm | Serpentine |
| Brand | Sparex |
| Clutch Ø ins | 4.4 |
| Clutch Ø mm | 112 |
| Coil Position | N/A |
| Compressor Type | SD7H15 |
| Gauge Line | 39.55mm |
| Grooves | 4 |
| Head Type | WV |
| Oil Quantity | 135 ml |
| Oil Type | PAG 100 Airco-Lube |
| Related Products | 106611, 106631, 106635, 106651, 106654, 106658, 106670, 106735, 106736, 106752, 106801, 106821, 106834, 111927, 112018, 112279, 112290, 118215 |
| Tariff Code | 8415900000 |
| Volts | 12V |
Manufacturer Part Numbers
| Case IH |
|---|
| 87709785, 87802912 |
| Ford New Holland |
| 47808999, 87202910, 87709785, 87802912 |
