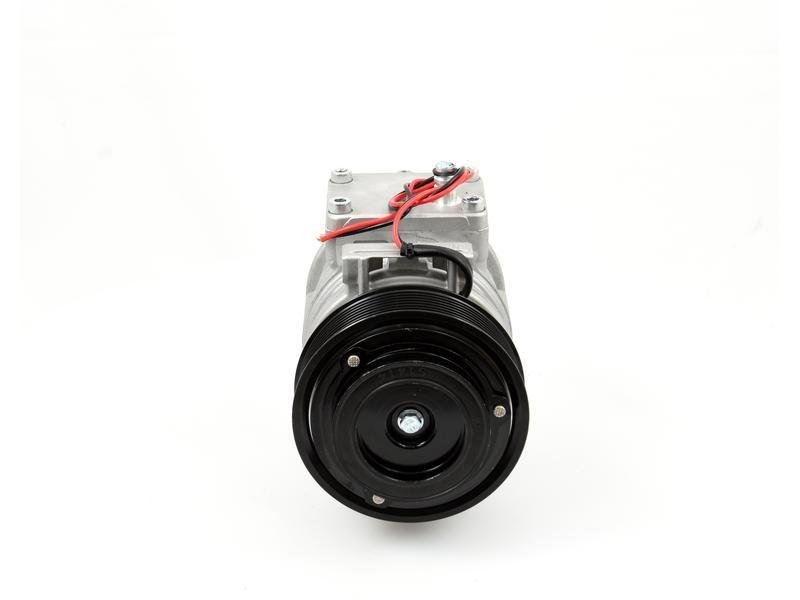

Compressor (10PA15C) for John Deere 6615 (6015 Series)
Part Number: S.106701Categories: Tractor Cabin
Part Number: S.106701
Grade: Replacement
Part Details
Compressor (10PA15C) Belt pulley width: Serpentinemm, Clutch Ø4.9'', Clutch Ø124.5mm, Gauge Line: 54.35mm, 2.14'', Grooves: 8, Head TypeOil Quantity: Add 5.4 oz Pag 46, Oil Type: Assembly Oil, Volts: 12V.
Technical Information
| Related products | 106609,106625,106639,106659,106660,106680,106681,106683,106745,106746,106747,106775,106782,106783,106797,106798,106801,106803,106810,106811,106833,111942,111968,112033,112131,112157,112185,112230,116683,118219 |
| Compressor Type | 10PA15C |
| Clutch Ø (mm) | 124.5 |
| Volts | 12V |
| Clutch Ø (ins) | 4.9 |
| Gauge Line | 54.35mm, 2.14'' |
| Grooves | 8 |
| Tariff Code | 8708299000 |
| Oil Quantity | Add 5.4 oz Pag 46 |
| Oil Type | Assembly Oil |
| Belt pulley width (mm) | Serpentine |
| Brand | Sparex |
Manufacturer Part Numbers
| Claas |
|---|
| 0010286831, 10286831, 10327521, 11011550, 11011551, 7700038545, 7700042614 |
| John Deere |
| AL153386, AL154203, AL155836, AL15836, AL174136, AL174137, AL176857, AL176858, AL78779, AL8779, RE203758, RE257084, SE501466, SE502882, SE503066, TY6769 |
| Renault |
| 0010286831, 10286831, 10327521, 7700038545, 7700042614 |
